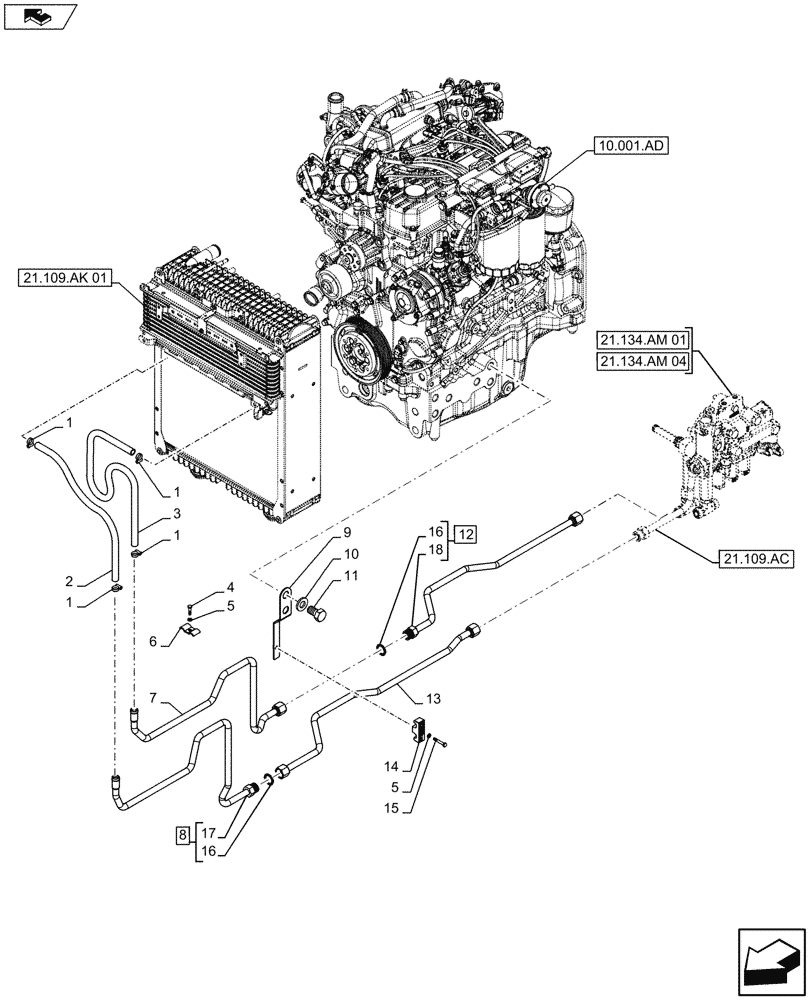

Запчасти Case IH FARMALL 115U (21.109.AD[01]) - STD + VAR - 390174 - OIL COOLER LINE (21) - TRANSMISSION

1

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

4шт.

2

47494673

HOSE,19mm ID x 775mm L, SAE 100R6

Return Line from Cooler to Transmission, 19mm ID x 775mm

1шт.

3

47482679

HOSE,19mm ID x 975mm L, SAE 100R6

Delivery Line from Transmission to Cooler, 19mm ID x 1230mm

1шт.

4

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

5

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

6

84475431

BRACKET

1шт.

7

47482211

PIPE

Delivery Line from Transmission to Cooler

1шт.

8

84549374

PIPE

ASSY, Return Line from Cooler to Transmission, Incl 16 (Qty 1), 17

1шт.

9

84550189

BRACKET

1шт.

10

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

1шт.

11

15987721

BOLT,Hex, M20 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

12

84549368

TUBE

ASSY, Delivery Line from Transmission to Cooler, Incl 16 (Qty 1), 18

1шт.

13

84549366

TUBE

Return Line from Cooler to Transmission

1шт.

14

87571442

BRACKET

1шт.

15

10903221

SCREW,Hex, M6 x 40mm, Cl 8.8

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

NSS

NOT SOLD SEPARAT

Tube, Incl in 8

1шт.

18

NSS

NOT SOLD SEPARAT

Tube, Incl in 12

1шт.
