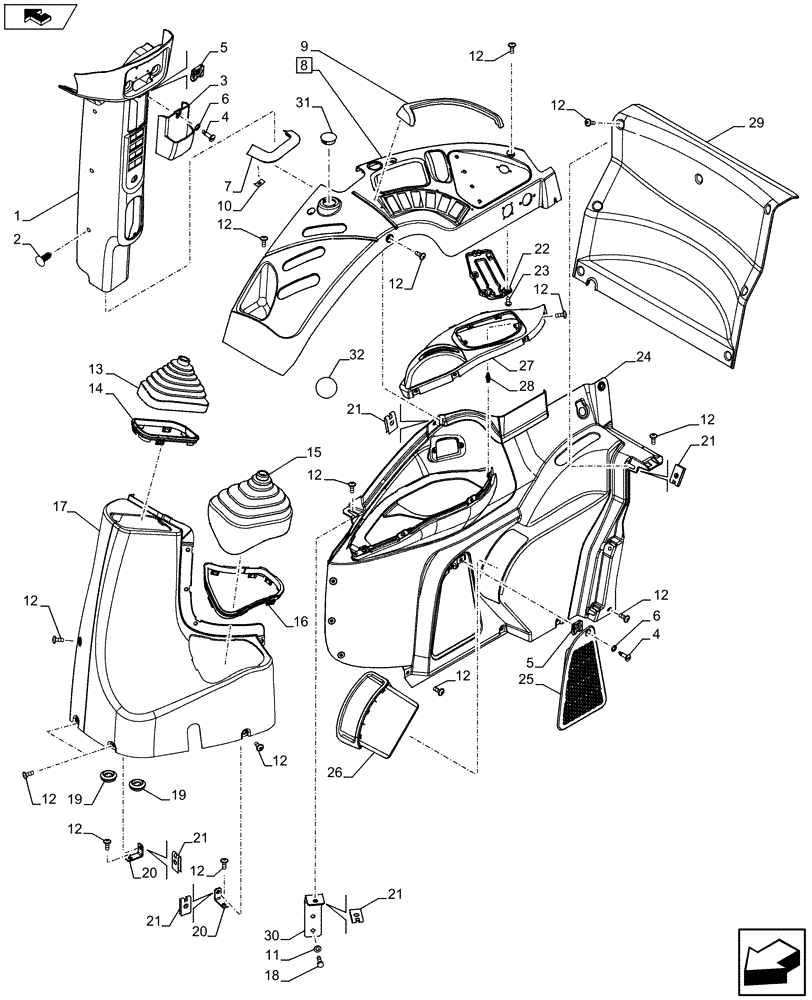

Запчасти Case IH FARMALL 115U (90.160.BL[01]) - STD + VAR - 390764 - CAB INTERIOR TRIM, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84315058

TRIM

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

6шт.

3

84315044

SUPPORT

1шт.

4

84354393

PIN,18.8mm L

2шт.

5

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

2шт.

7

84345365

RUBBER SEAL,121.9mm L

1шт.

8

84529885

TRIM

ASSY, Incl 9, Years: -10-MAR-13

1шт.

Standard Equipment without FHPL-FPTO

1шт.

8

84529939

TRIM

ASSY, Incl 9, Years: -10-MAR-13

1шт.

Standard Equipment with FHPL-FPTO

1шт.

8

47441347

TRIM

ASSY, Incl 9, Start Year: 11-MAR-13

1шт.

9

84529884

SHROUD

1шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

2шт.

12

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

35шт.

13

84370119

BOOT

1шт.

14

84370123

COVER

1шт.

15

84374601

BOOT

1шт.

16

84374602

COVER

1шт.

17

84347041

TRIM

1шт.

18

14183474

PUSH-ON NUT,M4, Push

Gray

5шт.

19

81862738

PLUG,M38 x 28 x 5mm

2шт.

20

84292077

BRACKET

3шт.

21

14371774

SPRING NUT,M6, U, 12mm long

11шт.

22

84527606

SUPPORT

1шт.

23

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

4шт.

24

84527591

TRIM

1шт.

25

84316040

FILTER COVER

1шт.

26

84386208

UTILITY HOLDER

1шт.

27

84527601

BEZEL

1шт.

28

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

4шт.

29

84370212

TRIM

1шт.

30

84311409

BRACKET

1шт.

31

82032555

PLUG,129.5mm ID

, Start Year: 11-MAR-13

1шт.

Standard Equipment without FHPL-FPTO

1шт.

32

47443197

DECAL

, Start Year: 11-MAR-13

1шт.
