Запчасти Case IH FARMALL 115U (90.160.AX[02]) - VAR - 339606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL, ISO - END YR 29-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

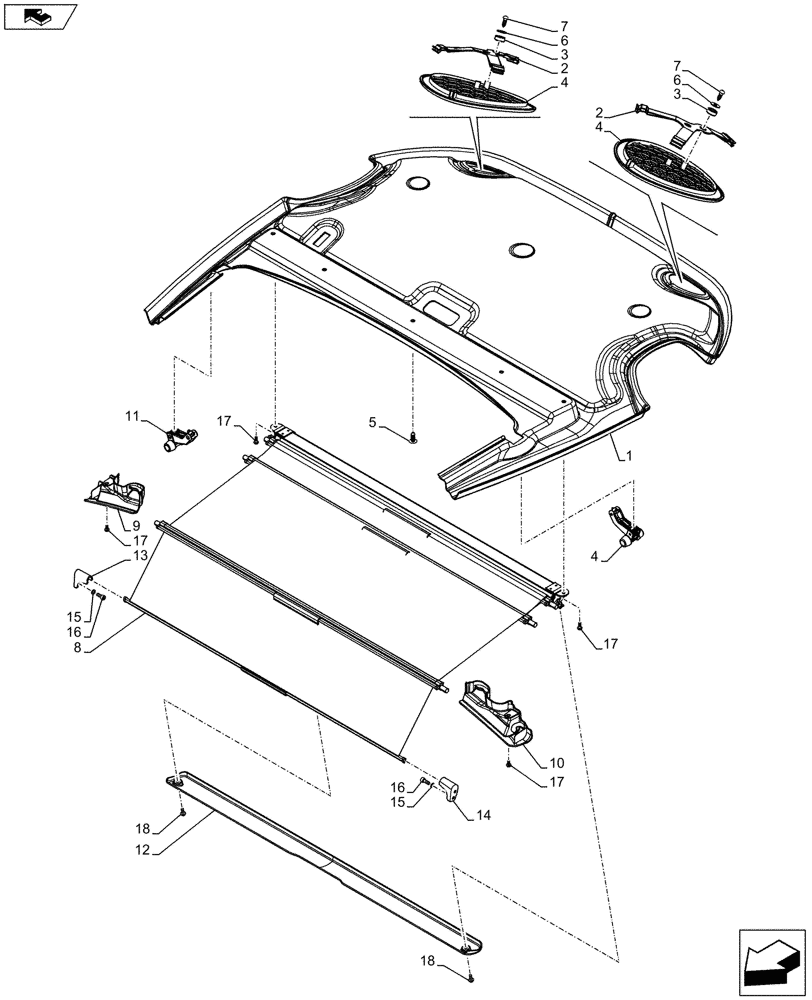

Схема запчастей Case IH FARMALL 115U - (90.160.AX[02]) - VAR - 339606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL, ISO - END YR 29-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
17
16
10
9
6
7
12
3
4
18
13
7
6
2
17
17
4
1
11
15
18
8
3
16
15
4
17
2
5
14

Артикул

Название

Примечание

Количество

1

84317656

SOFT TRIM

Headliner, W/ Hatch

1шт.

2

47422558

BRACKET

2шт.

3

47422464

SPACER,5.7mm ID x 10mm OD x 4mm L

4шт.

4

47422523

GRILLE

2шт.

5

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

6

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

7

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

8

84272313

SUN CURTAIN

1шт.

9

84317671

COVER

RH

1шт.

10

84317669

COVER

LH

1шт.

11

84317648

HANDLE

2шт.

12

84330758

COVER

1шт.

13

84341955

BRACKET

RH

1шт.

14

84341988

BRACKET

LH

1шт.

15

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

16

FOR2479277

SCREW,M6 x 16mm L

4шт.

17

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

4шт.

18

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

Выбрано товаров: 18
