Запчасти Case IH FARMALL 115U (90.160.AX[01A]) - VAR - 336606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL - BEGIN YR 30-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

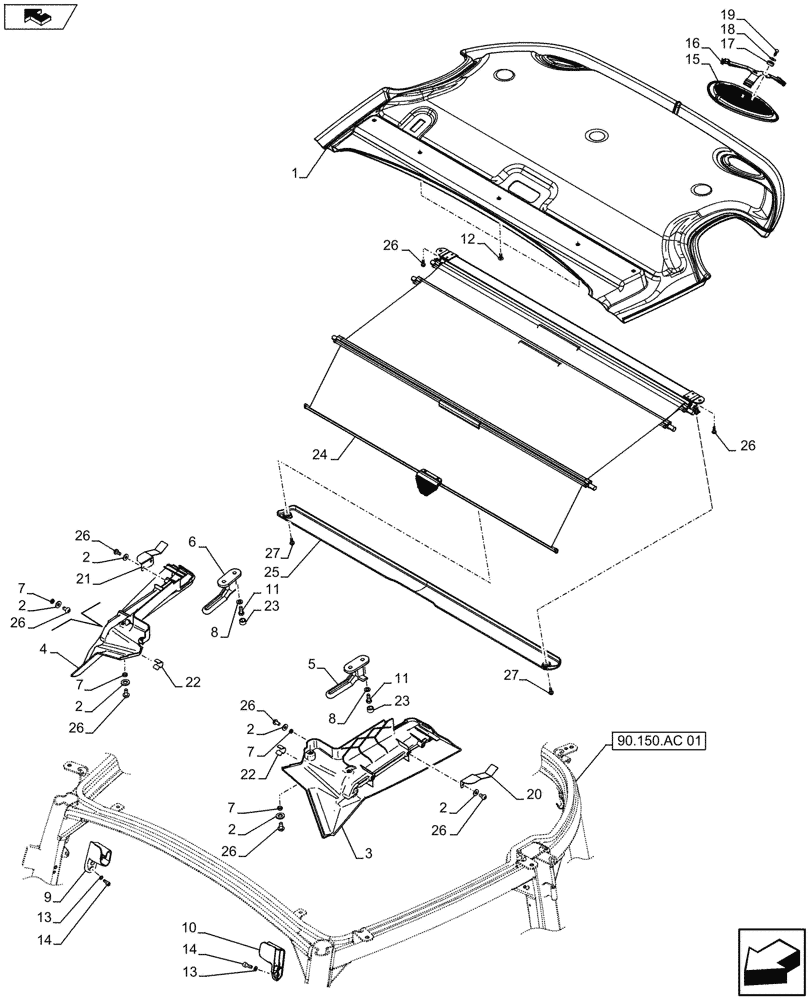

Схема запчастей Case IH FARMALL 115U - (90.160.AX[01A]) - VAR - 336606 - CAB ROOF - SOFT TRIM - W/ OPENABLE HIGH VISIBILITY PANEL - BEGIN YR 30-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac 01
23
22
9
26
14
2
11
2
11
27
26
3
12
25
7
2
16
26
26
2
22
23
7
13
27
19
7
home
13
26
8
24
18
4
14
26
2
21
7
15
26
20
26
5
2
10
6
8
1
17

Артикул

Название

Примечание

Количество

1

47441759

SOFT TRIM

1шт.

2

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

12шт.

3

47437898

GUIDE

LH

1шт.

4

47437896

COVER

RH

1шт.

5

5089564

HANDLE

LH, for High Visibility Panel

1шт.

6

5095078

HANDLE

RH, for High Visibility Panel

1шт.

7

47451478

BUSHING,7.2mm ID x 9.2mm OD x 2.8mm L

8шт.

8

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

9

47437466

BRACKET

RH

1шт.

10

47437473

BRACKET

LH

1шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

13

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

14

2479277

SCREW,Hex, M6 x 16mm, Cl 8.8

4шт.

15

47422523

GRILLE

2шт.

16

47422558

BRACKET

2шт.

17

47422464

SPACER,5.7mm ID x 10mm OD x 4mm L

4шт.

18

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

19

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

20

47441747

BRACKET

LH

1шт.

21

47441746

BRACKET

RH

1шт.

22

47441750

SPRING

2шт.

23

5089481

CAP,17mm OD

4шт.

24

47437463

SUN CURTAIN

1шт.

25

84330758

COVER

1шт.

26

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

14шт.

27

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

Выбрано товаров: 27
