Запчасти Case IH FARMALL 115U (90.160.AM[03]) - VAR - 332865 - CAB INTERIOR TRIM - LEFT SIDE - W/ INSTRUCTION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

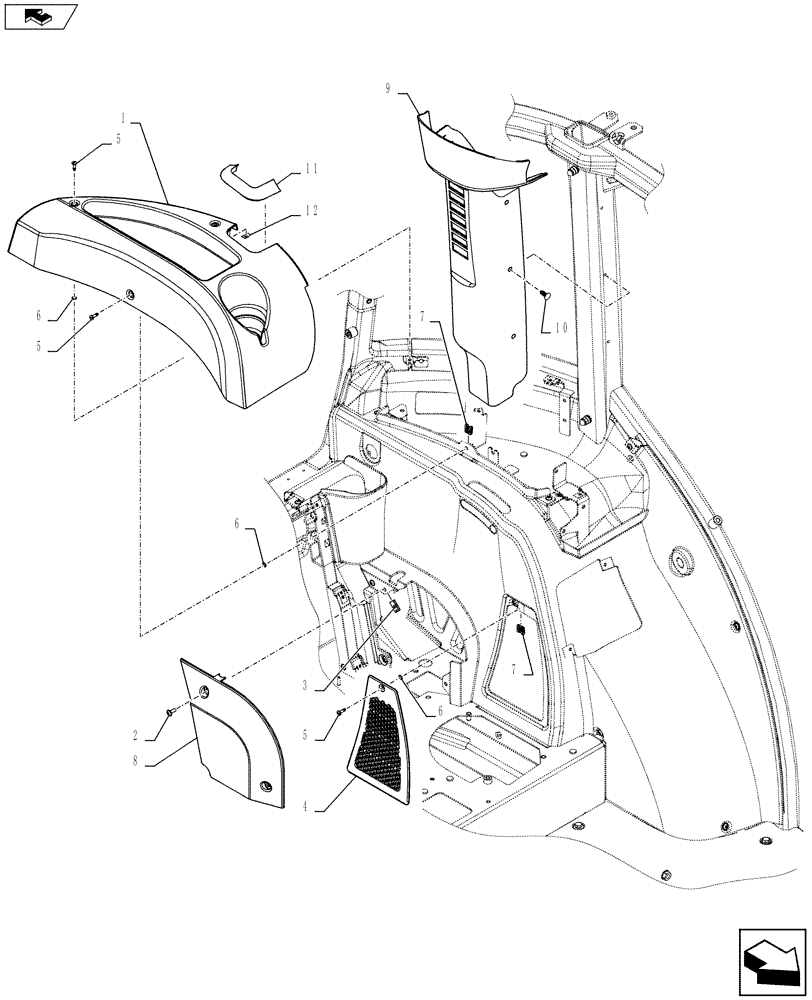

Схема запчастей Case IH FARMALL 115U - (90.160.AM[03]) - VAR - 332865 - CAB INTERIOR TRIM - LEFT SIDE - W/ INSTRUCTION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
7
5
6
5
9
11
8
3
4
2
5
7
10
1
12
6
6

Артикул

Название

Примечание

Количество

1

84316095

TRIM PANEL

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

2шт.

3

14371774

SPRING NUT,M6, U, 12mm long

2шт.

4

84316040

FILTER COVER

1шт.

5

84354393

PIN,18.8mm L

5шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

5шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

8

84316029

TRIM PANEL

1шт.

9

84327984

TRIM

1шт.

10

87648059

STUD,Plastic, NH Grey, 7.8mm x 19.5mmL

6шт.

11

84347880

RUBBER SEAL,123.8mm L

1шт.

12

14183474

PUSH-ON NUT,M4, Push

5шт.

Выбрано товаров: 12
