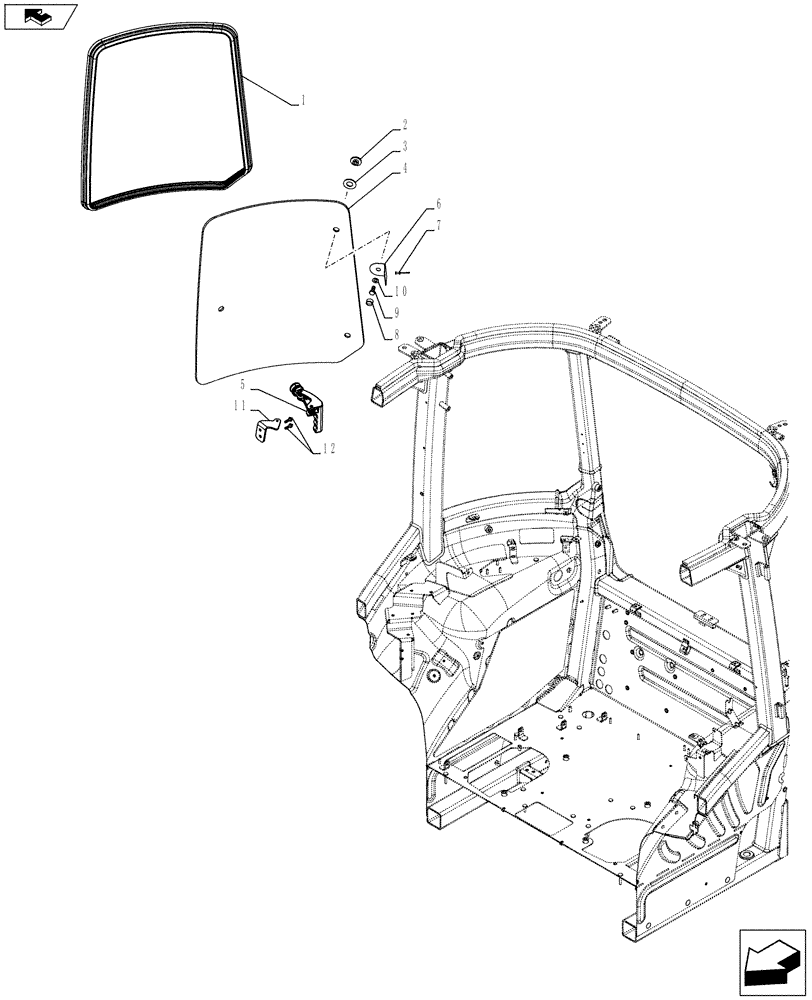

Запчасти Case IH FARMALL 115U (90.156.AZ[02]) - STD + VAR - 330642, 390642 - WINDOW, RIGHT SIDE - END YR 10-MAR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84327960

SEAL

1шт.

2

5094141

NUT,Spheric, M8

2шт.

3

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

2шт.

4

84327959

GLASS

1шт.

5

5096473

HANDLE

1шт.

6

84368803

BRACKET

2шт.

7

14642194

RIVET,Tr Hd, M3.9 x 14, Aluminum

4шт.

8

5089481

CAP,17mm OD

2шт.

9

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

11

84369167

BRACKET

1шт.

12

84479754

SCREW,Cross Rec Cheese Hd, M6 x 20mm, Cl 5.8

2шт.
