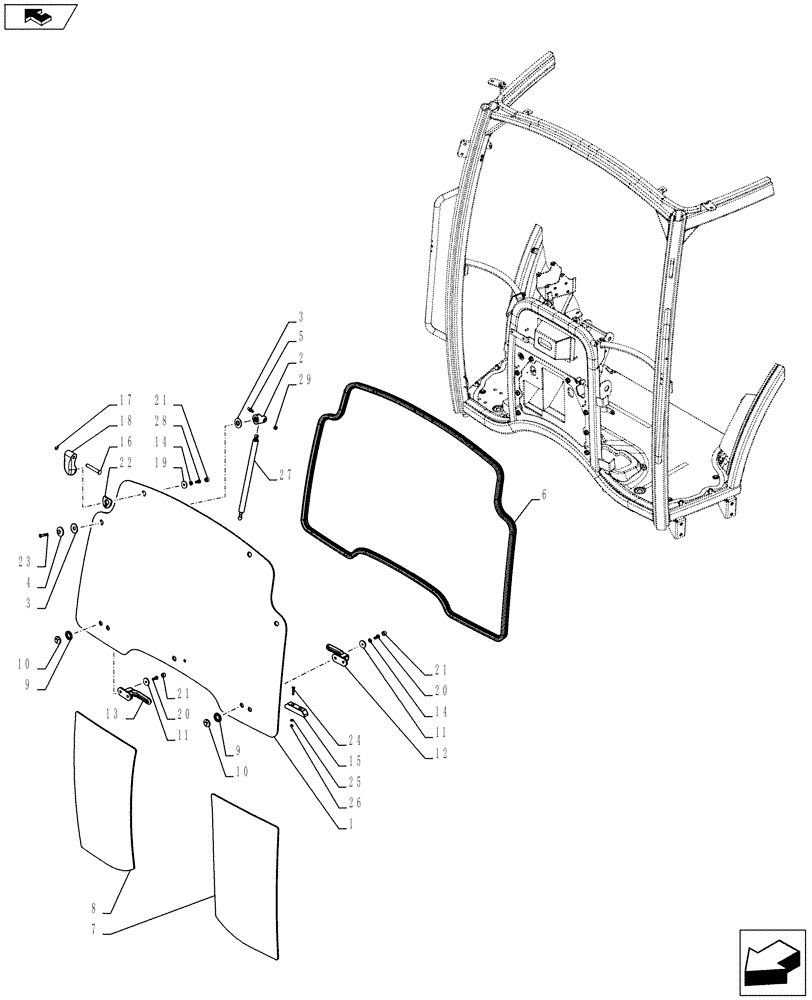

Запчасти Case IH FARMALL 115U (90.156.AV) - VAR - 339606 - WINDSHIELD - GLASS - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47358037

GLASS

1шт.

2

44910149

ARTICULATION

2шт.

3

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

4

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

5

44910148

BALL STUD,M8 x 1.25

2шт.

6

84224275

SEAL, GLASS

1шт.

7

84604859

GLASS

LH

1шт.

8

84604906

GLASS

RH

1шт.

9

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

4шт.

10

5094141

NUT,Spheric, M8

4шт.

11

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

4шт.

12

5089564

HANDLE

1шт.

13

5095078

HANDLE

1шт.

14

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

15

5094377

BRACKET

2шт.

16

84281904

PIN,11.8mm OD x 75.5mm L

2шт.

17

11088071

CIRCLIP,M10

2шт.

18

84281901

SUPPORT

2шт.

19

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

2шт.

20

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

21

5089481

CAP,17mm OD

6шт.

22

84281905

RUBBER SEAL

RH

1шт.

22

84281906

RUBBER SEAL

LH

1шт.

23

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

24

843-2525

SCREW,M5 x 25mm L

4шт.

25

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

4шт.

26

14048617

LOCK NUT,M5 x .8

4шт.

27

84280584

GAS STRUT

2шт.

28

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

29

16104414

LOCK NUT,M8 x 1.25

2шт.
