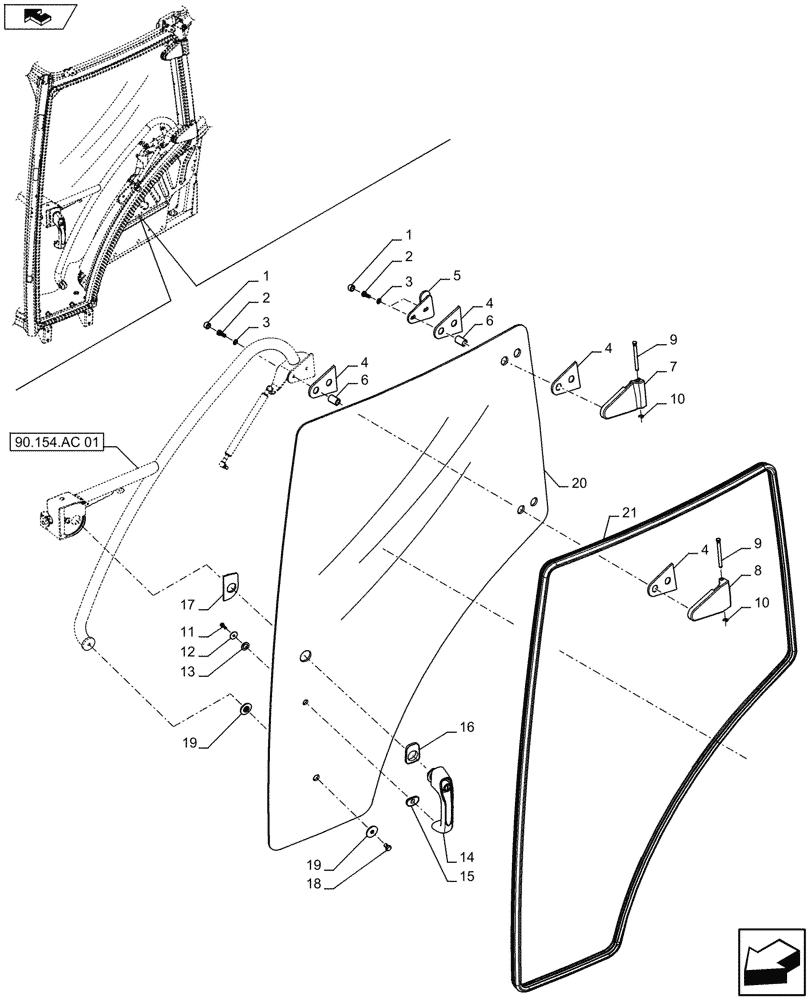

Запчасти Case IH FARMALL 115U (90.154.AV[02]) - VAR - 339606 - CAB DOOR - GLASS, ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5089481

CAP,17mm OD

8шт.

2

87646176

LOCK BOLT,Hex, M8 x 20mm, Cl 10.9

4шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

8шт.

4

87620476

RUBBER PAD

8шт.

5

84319872

BRACKET

LH

1шт.

5

84319884

BRACKET

RH

1шт.

6

47420096

SPACER,8.5mm ID x 18mm OD x 4mm L

4шт.

7

84329980

HINGE

LH

1шт.

7

84330148

HINGE

RH

1шт.

8

87700818

HINGE

2шт.

9

5091925

PIN,8mm OD x 97mm L

4шт.

10

11087976

CIRCLIP,Ext., M8, BLO

4шт.

11

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

12

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

13

82029142

GASKET,16mm ID x 26mm OD x 3mm Thk

2шт.

14

82029168

HANDLE

2шт.

15

82029171

GASKET,5mm Thk, 12mm ID

2шт.

16

82029170

GASKET,5-6.5mm Thk, 32mm ID

2шт.

17

82029165

GASKET,5.3-6.9mm Thk

Latch Bracket, LH

1шт.

17

82029161

GASKET,5.3mm Thk

Latch Bracket, RH

1шт.

18

5177632

BOLT,M8 x 1.25 x 30mm

2шт.

19

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

4шт.

20

84224132

CAB GLASS

LH

1шт.

20

84224131

CAB GLASS ASSY

RH

1шт.

21

84224130

SEAL, GLASS,4150mm L

2шт.
