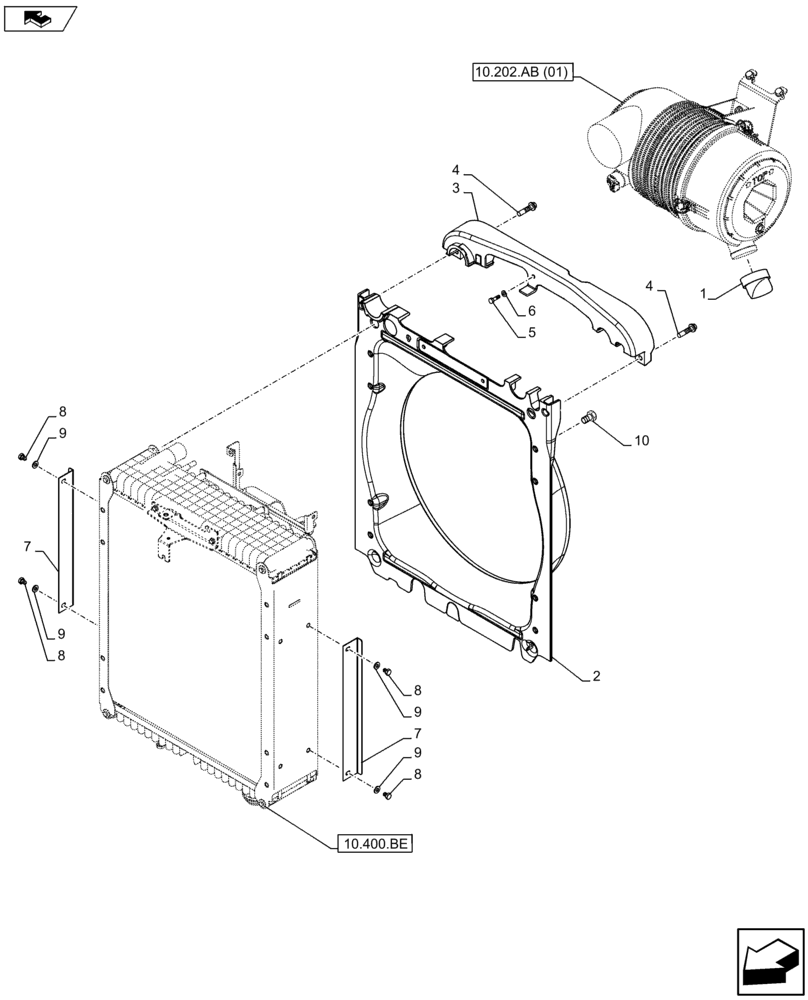

Запчасти Case IH FARMALL 115U (10.400.BF[02]) - VAR - 330200, 390200 - RADIATOR FAN SHROUD (10) - ENGINE

1

84185540

DUST CAP

1шт.

2

84279593

SHROUD

1шт.

3

84425897

SEAL

1шт.

4

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

7

84405336

COVER

2шт.

8

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

9

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

10

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.
