(10.310.AA) - VAR - 336816, 390174 - INTERCOOLER, SUPPORT

Запчасти Case IH FARMALL 115U (10.310.AA) - VAR - 336816, 390174 - INTERCOOLER, SUPPORT (10) - ENGINE

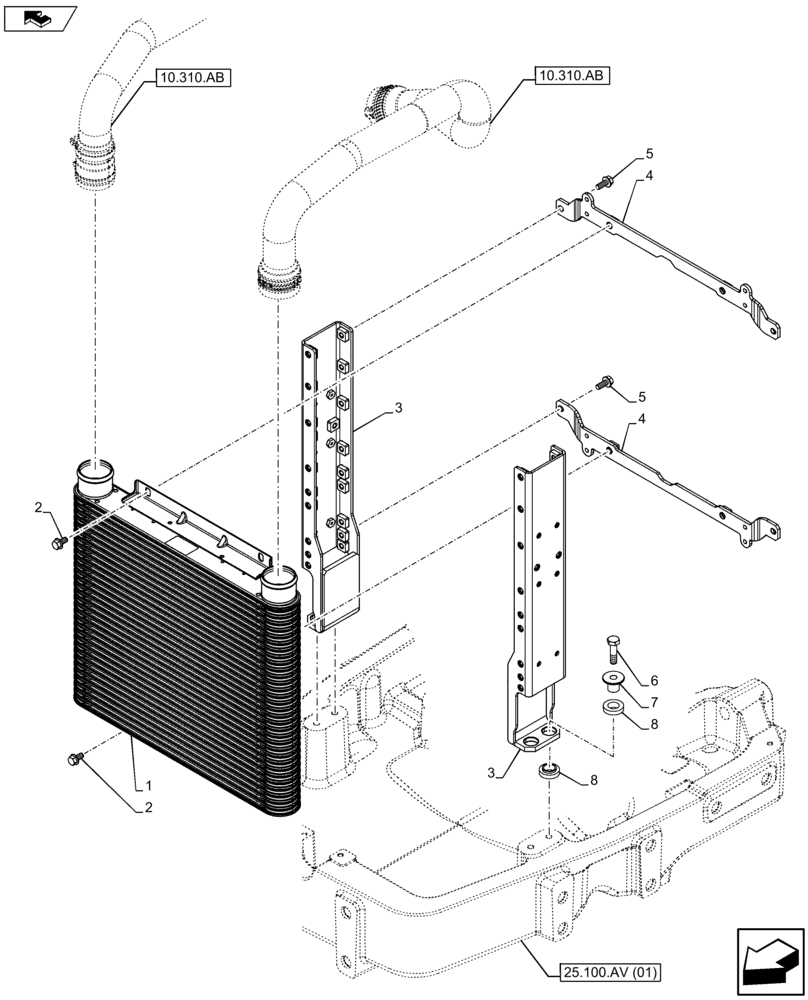

Схема запчастей Case IH FARMALL 115U - (10.310.AA) - VAR - 336816, 390174 - INTERCOOLER, SUPPORT (10) - ENGINE
6
7
3
8
4
8
4
home
5
home
3
10.310.ab
10.310.ab
2
5
2
25.100.av (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84350394

INTERCOOLER

Includes Intercooler 32 PLATES (p/n 84350393), Intercooler 32 PLATES (p/n 87735935

1шт.

2

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

3

47420963

SUPPORT

2шт.

4

84361197

BRACKET

2шт.

5

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

4шт.

6

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

4шт.

7

84370147

SPACER,10.4mm ID x 34mm OD x 22.8mm L

4шт.

8

4952241

PAD

8шт.

Выбрано товаров: 8
