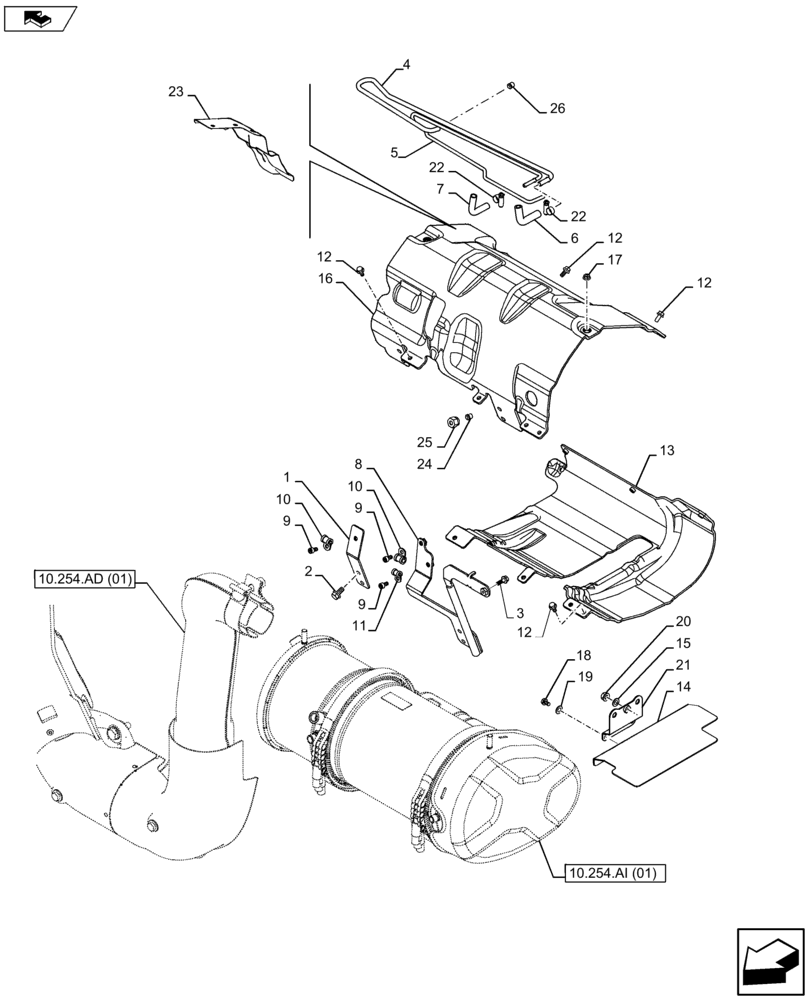

Запчасти Case IH FARMALL 115U (10.254.AI[02]) - VAR - 336816, 390174 - MUFFLER, HEAT SHIELD (10) - ENGINE

1

84583916

BRACKET

1шт.

2

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

3

16286124

BOLT,M6 x 20mm, 8.8 DAC

1шт.

4

84321106

TUBE,8mm OD, Rigid

Pressure, Rigid

1шт.

5

84321108

TUBE,6mm OD, Rigid

Pressure, Rigid

1шт.

6

84321111

PRESSURE PIPE,8mm ID x 79.4mm L, Flexible

Flexible

1шт.

7

84321109

PRESSURE PIPE,6mm ID x 84.9mm L, Flexible

Flexible

1шт.

8

84583906

BRACKET

1шт.

9

14305131

HEX SOC SCREW,M6 x 12mm, Cl 10.9, Full Thd

3шт.

10

10418301

RETAINER COLLAR,8mm, Coat, 7mm Bolt Hole, P Type

2шт.

11

10418101

RETAINER COLLAR,6mm, Coat, P Type

1шт.

12

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

10шт.

13

84485446

HEAT SHIELD

Lower

1шт.

14

47411323

HEAT SHIELD

Lower

1шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

16

84485444

HEAT SHIELD

Upper

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

19

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

20

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

21

84530346

HEAT SHIELD

Upper

1шт.

22

13000190

HOSE CLAMP,M10-16

4шт.

23

47367116

HEAT SHIELD

Upper

1шт.

24

11266411

FERRULE,6mm, Style A

1шт.

25

11260211

TUBE NUT,M12 x 1.5mm, 8 ZND

1шт.

26

11260311

TUBE NUT,M14 x 1.5mm, 8 ZND

1шт.
