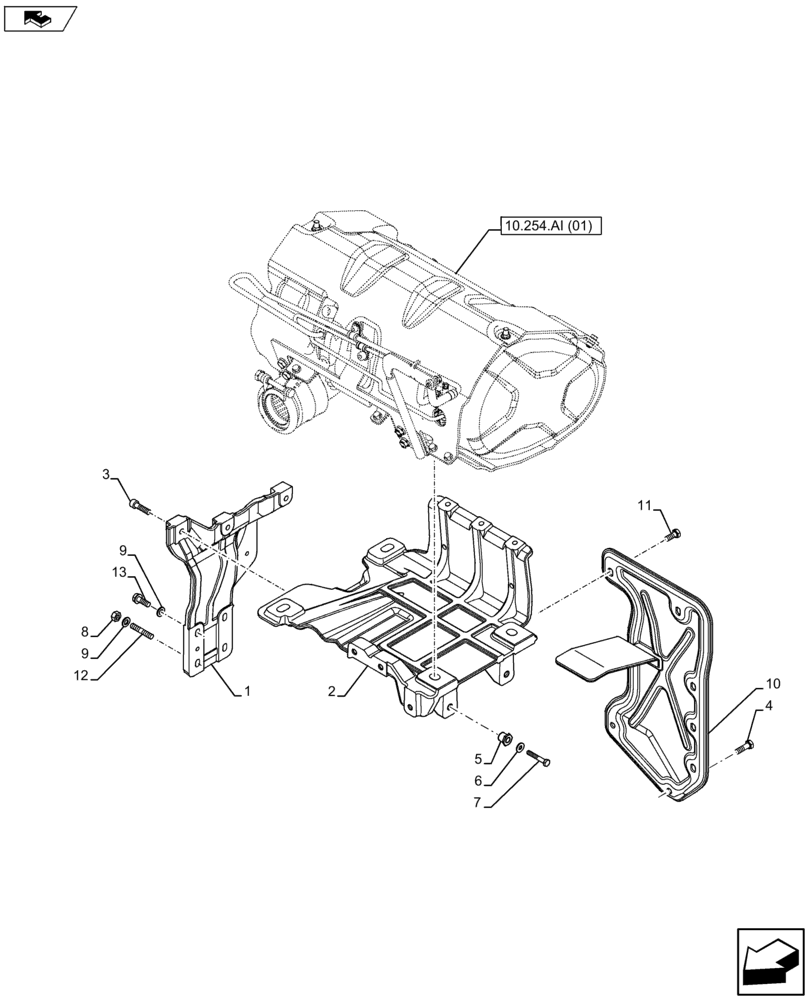

Запчасти Case IH FARMALL 115U (10.254.AD[02]) - VAR - 336816, 390174 - MUFFLER, SUPPORT (10) - ENGINE

1

84600907

BRACKET

RH

1шт.

2

84600908

SUPPORT

Middle

1шт.

3

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

2шт.

5

84529819

BUSHING,M24 x 1.5

2шт.

6

12646724

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

7

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

10

84529547

SUPPORT

LH

1шт.

11

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

5шт.

12

13517320

STUD,M8 x 1.25 x 35.00mm, Cl 8.8, PLN

2шт.

13

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
