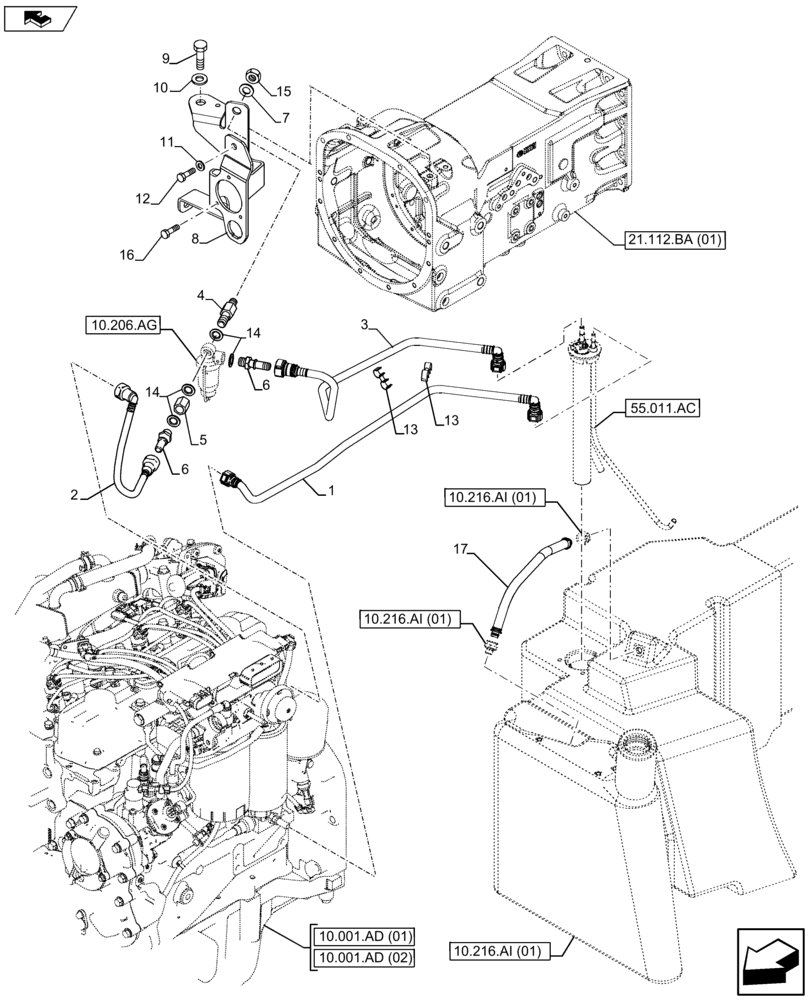

Запчасти Case IH FARMALL 115U (10.216.BA) - VAR - 330142 - FUEL LINE (10) - ENGINE

1

47418426

TUBE

Return

1шт.

2

84473049

FUEL TUBE

Send

1шт.

3

47418428

FUEL TUBE

Send

1шт.

4

84364449

ADAPTER,M14 x 1.5mm / M12 x 1.25mm, 69.5mm Length

1шт.

5

84364450

FLANGE NUT,Hex, M14 x 1.5, 22.5 Thd

1шт.

6

84423906

PIPE FITTING,M14 x 1.5mm / 11.8mm OD

2шт.

7

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

8

47454536

BRACKET

1шт.

9

86637972

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

10

12646904

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

11

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

12

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

82039687

HOSE CLIP,2 Hoses

2шт.

14

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

15

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

1шт.

16

14642691

RIVET,Pop, M4.8mm OD x 10mm L

3шт.

17

82039248

FLEXIBLE HOSE

Fuel Ventilation

1шт.
