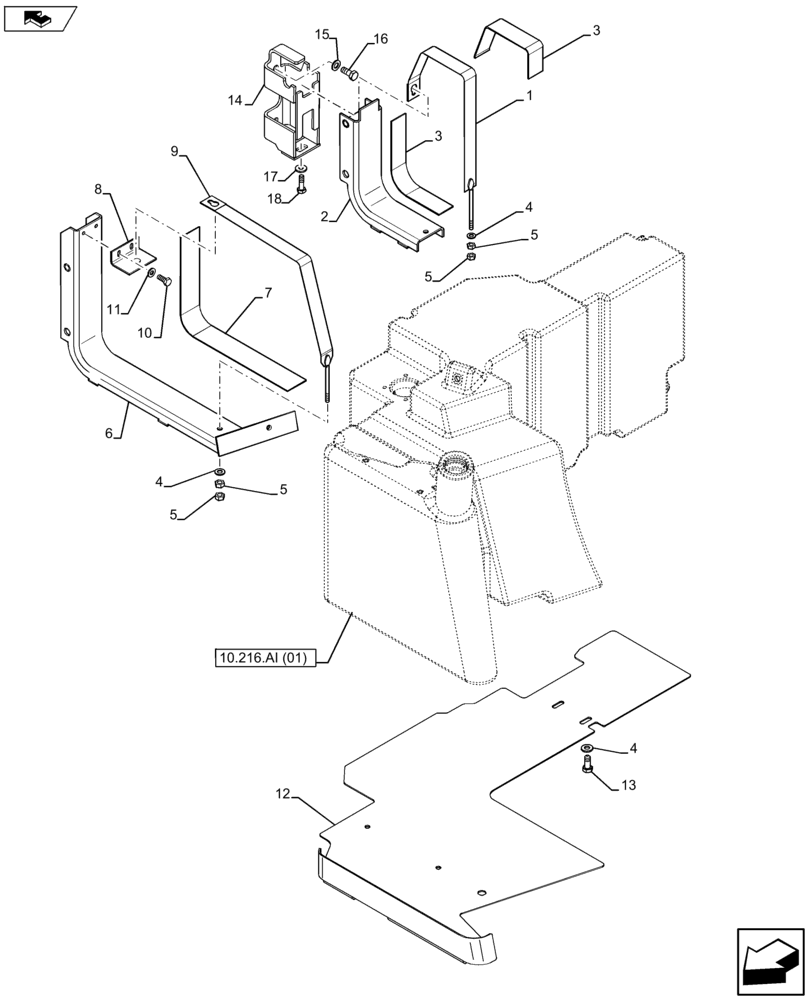

Запчасти Case IH FARMALL 115U (10.216.AI[02]) - VAR - 330142 - FUEL TANK, SUPPORT (10) - ENGINE

1

82020723

SECURING STRAP

LH

1шт.

2

82033333

SUPPORT

LH, Rear

1шт.

3

82013475

RUBBER PAD

LH

2шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

5

100016

NUT,M10 x 1.5, Cl 8

4шт.

6

87480782

SUPPORT

RH, Rear

1шт.

7

82012920

RUBBER PAD,635mm L

1шт.

8

82027923

SUPPORT

RH, Rear

1шт.

9

82013785

BRACKET

RH

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

12

47416375

SHIELD

1шт.

13

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

14

84574995

SUPPORT

LH, Rear

1шт.

15

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

16

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

17

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

18

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

2шт.
