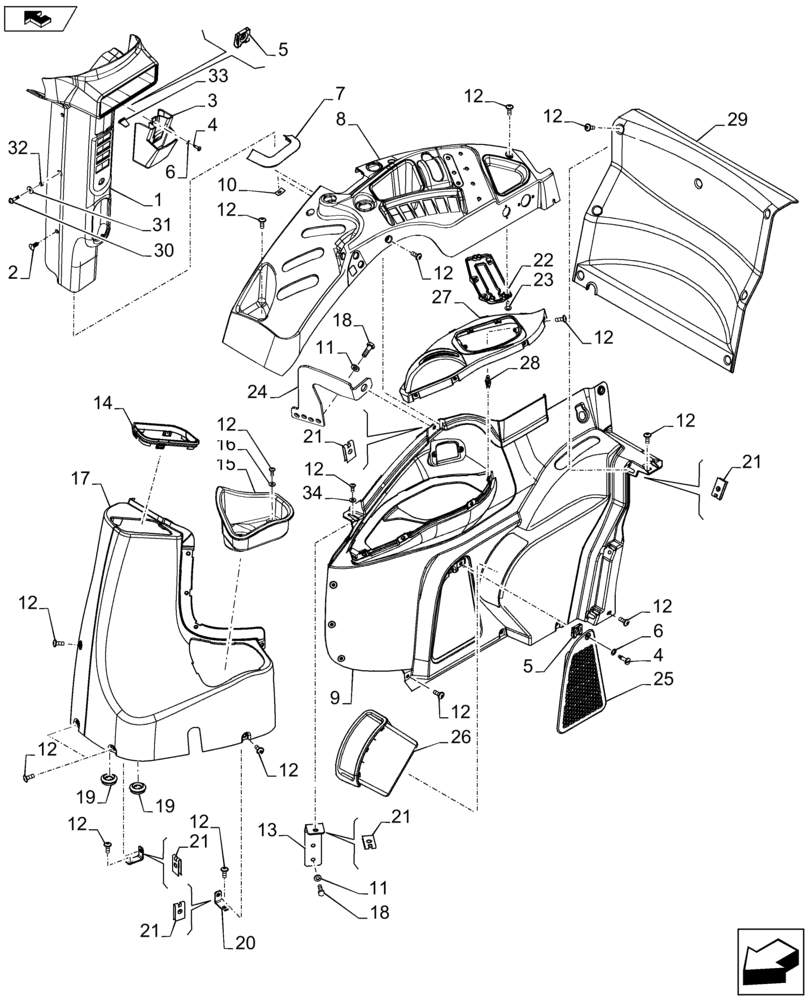

Запчасти Case IH FARMALL 115U (90.160.BL[02]) - VAR - 334929 - CAB INTERIOR TRIM, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47567275

TRIM

RH

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

7шт.

3

47501971

SUPPORT

1шт.

4

84354393

PIN,18.8mm L

2шт.

5

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

2шт.

7

84345365

RUBBER SEAL,121.9mm L

1шт.

8

47441347

TRIM

RH

1шт.

9

84527591

TRIM

RH

1шт.

10

14183474

PUSH-ON NUT,M4, Push

5шт.

11

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

4шт.

12

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

35шт.

13

84311409

BRACKET

1шт.

14

84370123

COVER

1шт.

15

84597373

TRIM

RH

1шт.

16

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

47477343

TRIM

RH

1шт.

18

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

19

81862738

PLUG,M38 x 28 x 5mm

2шт.

20

84292077

BRACKET

3шт.

21

14371774

SPRING NUT,M6, U, 12mm long

11шт.

22

84527606

SUPPORT

1шт.

23

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

4шт.

24

47484158

BRACKET

1шт.

25

84315050

FILTER COVER

1шт.

26

84386208

UTILITY HOLDER

1шт.

27

84527601

BEZEL

1шт.

28

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

4шт.

29

84370212

TRIM

RH

1шт.

30

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

1шт.

31

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

32

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

1шт.

33

47540207

BUMPER

1шт.

34

895-30102

WASHER,6.6mm ID x 21mm OD x 1.6mm Thk

2шт.
