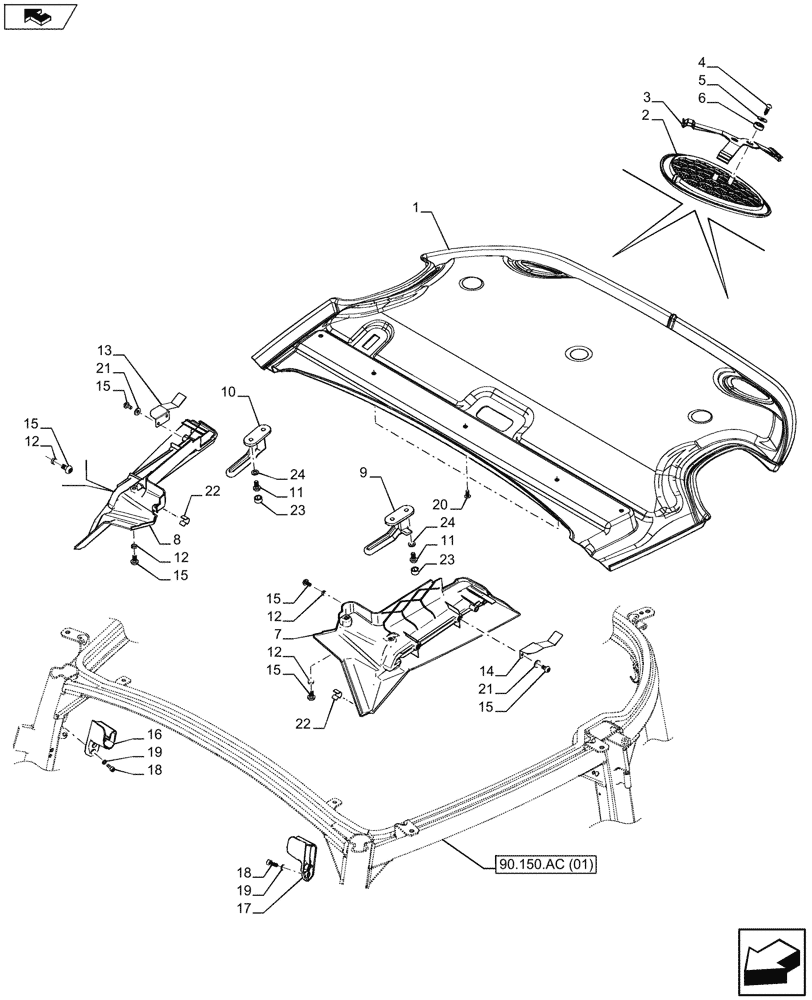

Запчасти Case IH FARMALL 115U (90.160.AX) - VAR - 334144, 334145, 335683, 335684 - CAB HEADLINER, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47437926

SOFT TRIM

Headliner W/ Hatch, gRAY

1шт.

2

47422519

GRILLE

2шт.

3

47422558

BRACKET

2шт.

4

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

5

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

6

47422464

SPACER,5.7mm ID x 10mm OD x 4mm L

4шт.

7

47437577

COVER

LH

1шт.

8

47437531

GUIDE

RH

1шт.

9

5089564

HANDLE

Lock, LH

1шт.

10

5095078

HANDLE

1шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

47451478

BUSHING,7.2mm ID x 9.2mm OD x 2.8mm L

8шт.

13

47441746

BRACKET

RH

1шт.

14

47441747

BRACKET

LH

1шт.

15

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

12шт.

16

47437466

BRACKET

RH

1шт.

17

47437473

BRACKET

LH

1шт.

18

2479277

SCREW,Hex, M6 x 16mm, Cl 8.8

4шт.

19

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

20

87648059

STUD,Plastic, NH Grey, 7.8mm x 19.5mmL

3шт.

21

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

12шт.

22

47441750

SPRING

2шт.

23

5089481

CAP,17mm OD

4шт.

24

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.
