(90.151.AE[02]) - VAR - 334144, 334145, 335683, 335684 - SUN CURTAIN, W/ HIGH VISIBILITY PANEL

Запчасти Case IH FARMALL 115U (90.151.AE[02]) - VAR - 334144, 334145, 335683, 335684 - SUN CURTAIN, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

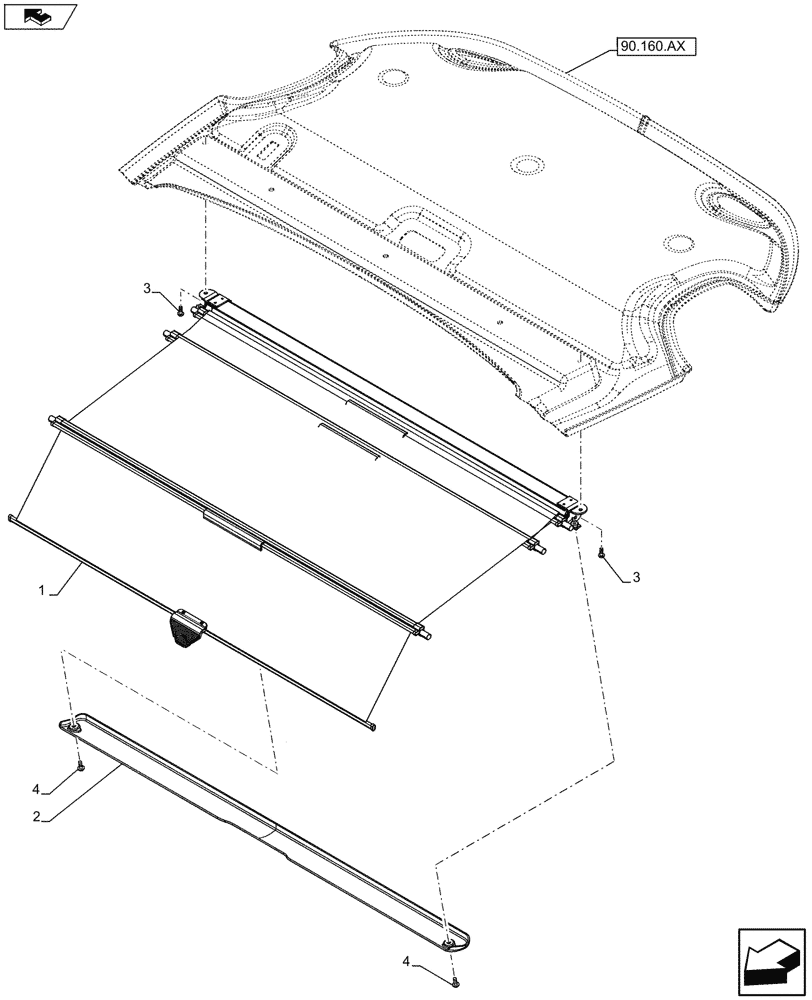

Схема запчастей Case IH FARMALL 115U - (90.151.AE[02]) - VAR - 334144, 334145, 335683, 335684 - SUN CURTAIN, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
3
4
2
1
4
90.160.ax
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47437463

SUN CURTAIN

1шт.

2

84324267

COVER

1шт.

3

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

2шт.

4

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.
