(90.151.AC[02]) - VAR - 332865 - PASSENGER SEAT, COMPONENTS

Запчасти Case IH FARMALL 115U (90.151.AC[02]) - VAR - 332865 - PASSENGER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

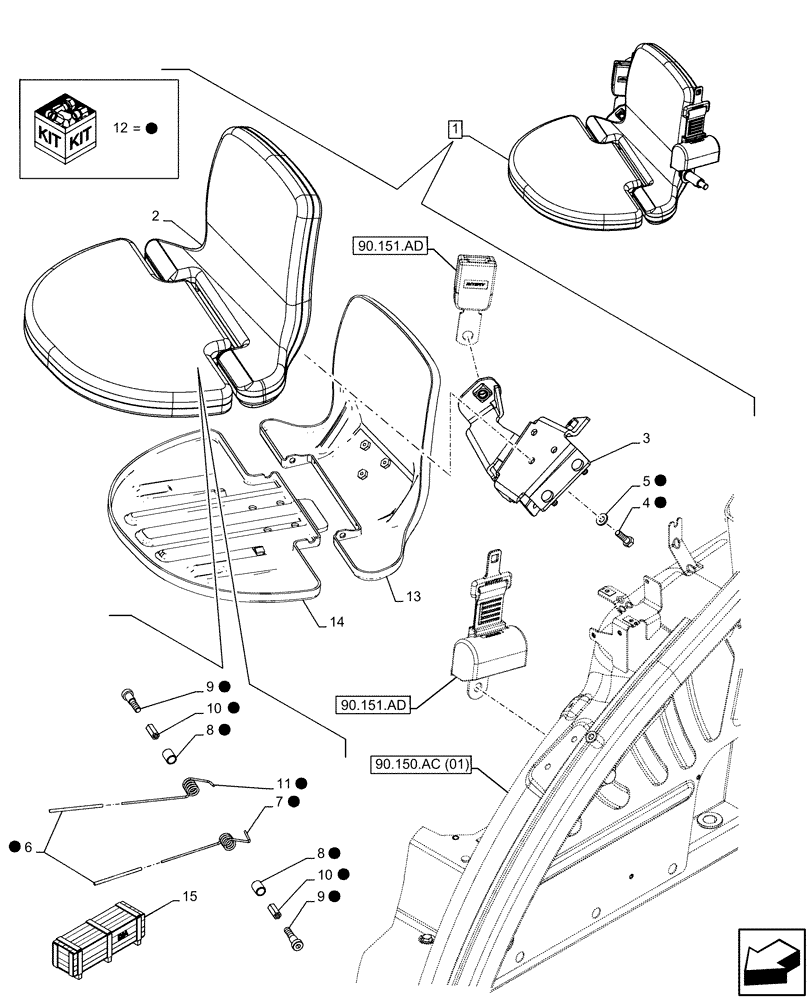

Схема запчастей Case IH FARMALL 115U - (90.151.AC[02]) - VAR - 332865 - PASSENGER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
12
9
4
12
5
12
10
8
12
3
13
14
7
6
11
12
2
12
9
12
8
12
10
12
1
15
12
12
12
90.151.ad
90.151.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47564639

INSTRUCTIONAL SEAT

ASSY, Fabric, Wheat, Incl 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion, Incl in 1

1шт.

3

84295299

BRACKET

1шт.

4

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

M8 x 1.25 x 25mm

3шт.

5

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

8.4mm x 17.5mm x 2mm

3шт.

6

84412870

SLEEVE

2шт.

7

84412864

SPRING

LH

1шт.

8

84412873

BUSHING

2шт.

9

84412857

HEX SOC SCREW,Hex, M8 x 1.25 x 37mm

M8 x 1.25 x 37mm

2шт.

10

84412869

PROFILE,M8 x 1.25

M8 x 1.25

2шт.

11

84412859

SPRING

RH

1шт.

12

84470865

KIT

Instructional Seat, Incl 4 - 11

1шт.

13

47578771

SHEET

Backrest

1шт.

14

47578769

SHEET

Cushion

1шт.

15

718829080

DIA KIT, TRACTOR

Instruction Seat with Seat Belt, Incl 1 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
