(90.150.BG[04]) - VAR - 334144, 334145, 335683, 335684 - CAB ROOF, W/ HIGH VISIBILITY PANEL

Запчасти Case IH FARMALL 115U (90.150.BG[04]) - VAR - 334144, 334145, 335683, 335684 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

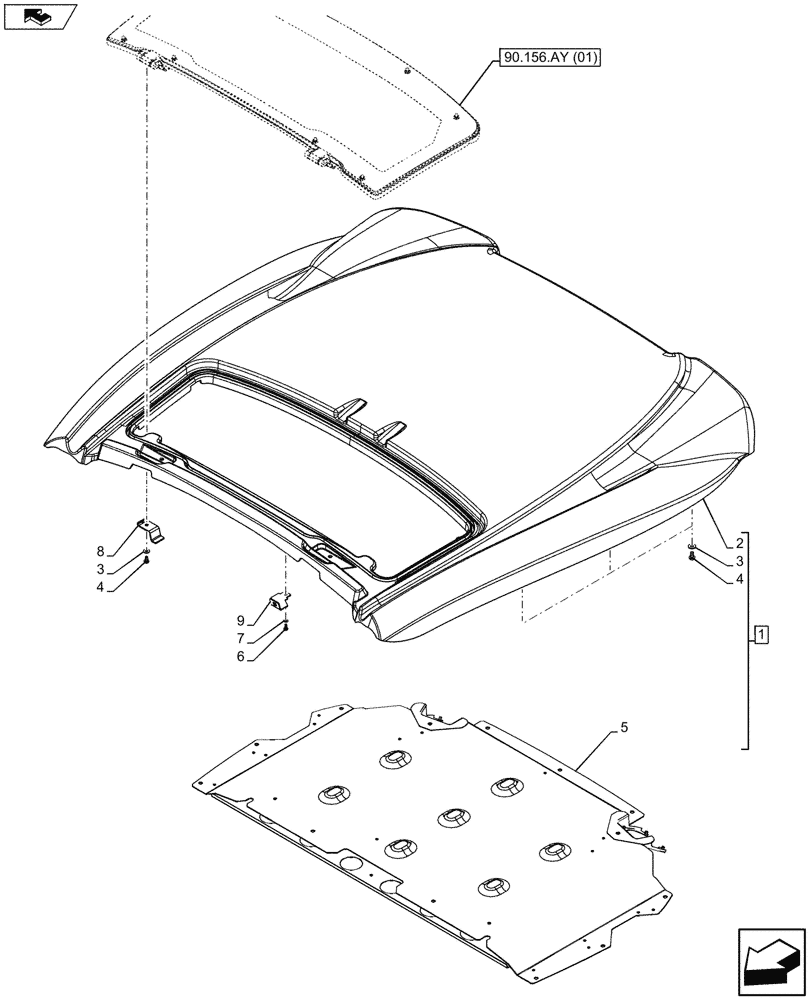

Схема запчастей Case IH FARMALL 115U - (90.150.BG[04]) - VAR - 334144, 334145, 335683, 335684 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.156.ay (01)
8
4
4
3
7
1
2
5
6
9
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47437382

ROOF

Blue, ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Roof, Incl in 1

1шт.

3

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

11шт.

4

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

11шт.

5

47411515

STEEL PLATE

1шт.

6

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

7

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

8

47446217

BRACKET

2шт.

9

47398004

BRACKET

1шт.
