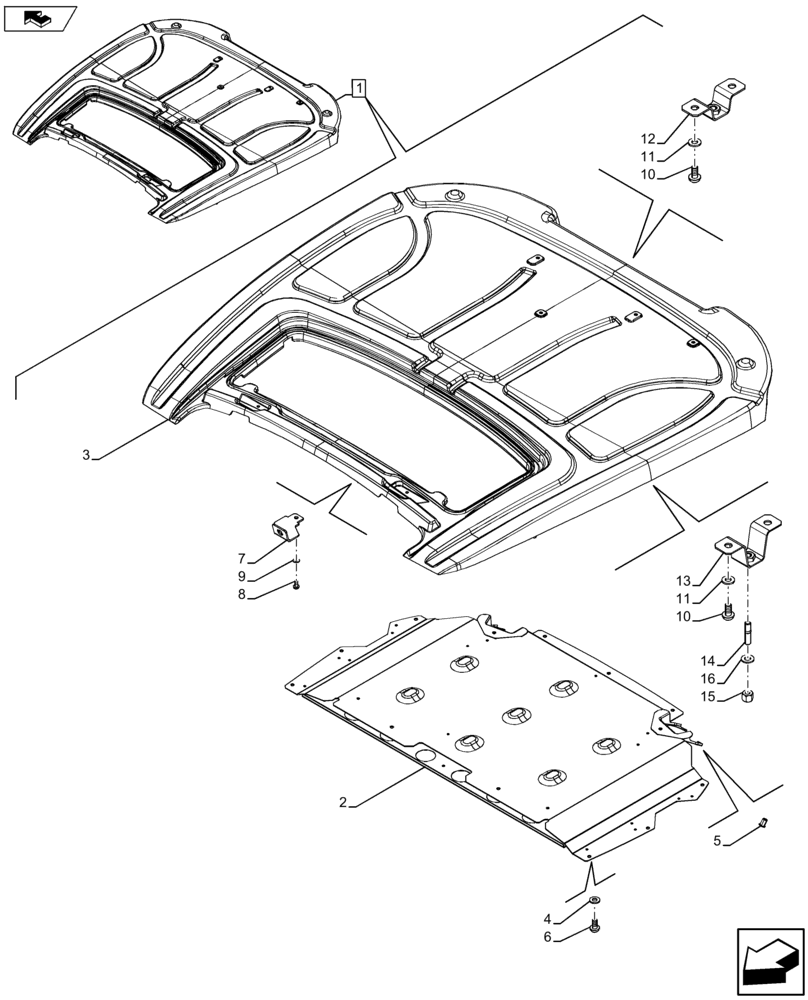

Запчасти Case IH FARMALL 115U (90.150.BG[03]) - VAR - 334144, 335683 - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47714907

ROOF

ASSY, Incl 2 - 16

1шт.

2

47411515

STEEL PLATE

1шт.

3

NSS

NOT SOLD SEPARAT

Roof, Incl in 1

1шт.

4

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

11шт.

5

15624211

RIVET,Flat, M4 OD x 10mm L

8шт.

6

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

11шт.

7

47613002

BRACKET

1шт.

8

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

9

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

10

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

8шт.

11

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

12

84317195

BRACKET

2шт.

13

84317193

BRACKET

2шт.

14

13516924

STUD,M8 x 34mm L, Cl. 8.8

6шт.

15

16104114

LOCK NUT,M8, Cl 8

4шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
