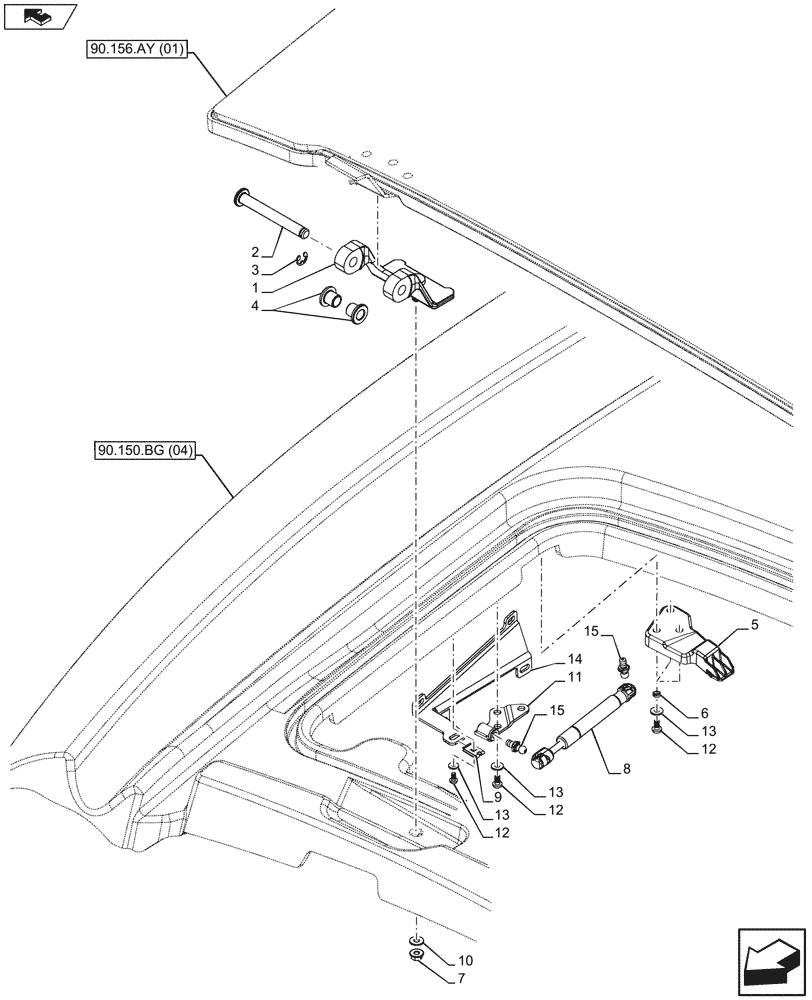

Запчасти Case IH FARMALL 115U (90.150.BC[04]) - VAR - 334144, 334145, 335683, 335684 - CAB ROOF, HATCH, HINGE, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84585046

HINGE

Black

1шт.

2

84277677

PIN,8mm OD x 68mm L

1шт.

3

800-436

CIRCLIP,M6

1шт.

4

84276011

BUSHING,8mm ID x 10mm OD x 11mm L

2шт.

5

47437393

BRACKET

LH

1шт.

5

47437403

BRACKET

RH

1шт.

6

47451478

BUSHING,7.2mm ID x 9.2mm OD x 2.8mm L

3шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

8

47622039

GAS STRUT

1шт.

9

14371774

SPRING NUT,M6, U, 12mm long

4шт.

10

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

11

47455917

BRACKET

Gas Spring, LH

1шт.

11

47455918

BRACKET

Gas Spring, RH

1шт.

12

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

11шт.

13

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

11шт.

14

47441755

BRACKET

RH

1шт.

14

47441754

BRACKET

LH

1шт.

15

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.
