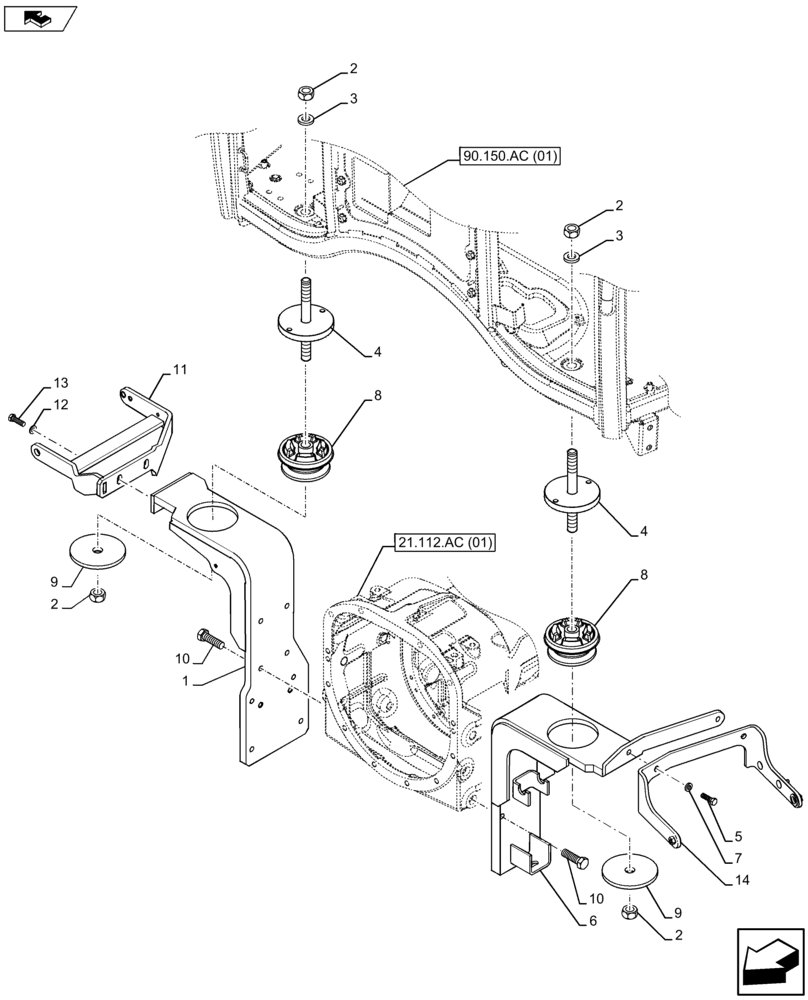

Запчасти Case IH FARMALL 115U (90.150.BB[03]) - VAR - 335683 - CAB SUPPORT, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84578349

SUPPORT

RH

1шт.

2

12164321

NUT,M20 x 1.5, Cl 10

2шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

4

47712980

SPACER

2шт.

5

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

6

84578343

SUPPORT

LH

1шт.

7

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

8

83983548

ISOLATOR,120mm OD x 64mm L

2шт.

9

47465749

SPACER,12.5mm ID x 16mm OD x 8mm L

2шт.

10

47477557

BOLT

Hex, M14 x 1.5 x 50mm, Cl 12.9

8шт.

11

47457854

SUPPORT

RH

1шт.

12

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

13

11422321

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

14

84538467

SUPPORT

LH

1шт.
