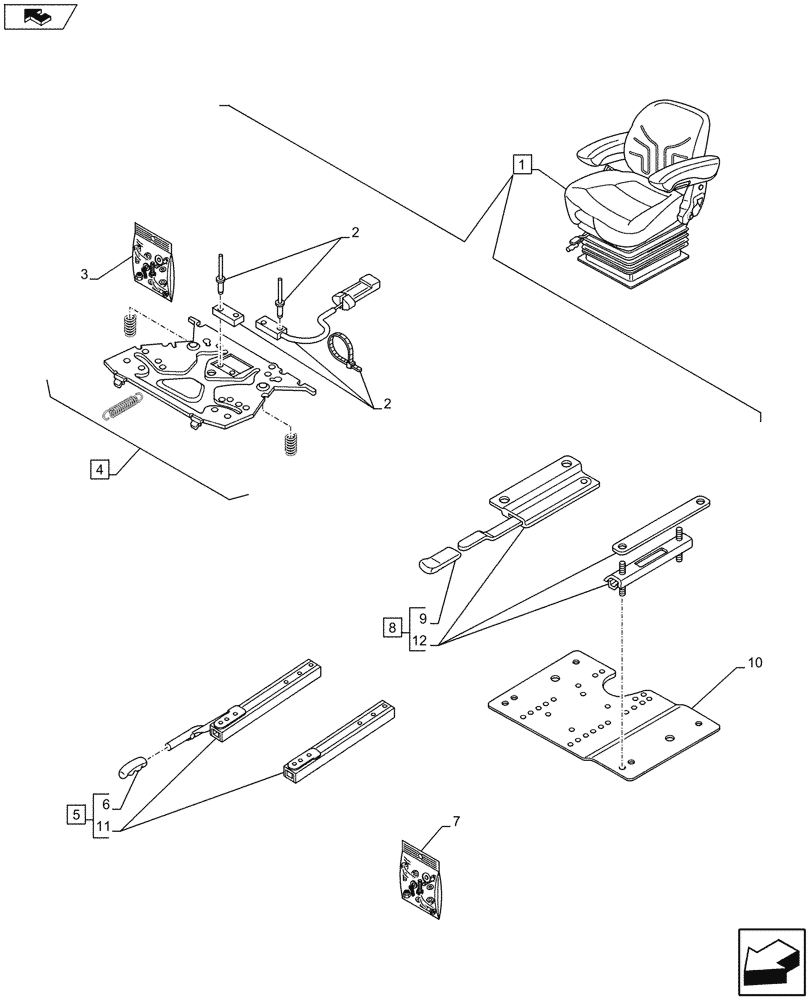

Запчасти Case IH FARMALL 115U (90.124.AE[26]) - VAR - 332850 - DRIVER SEAT, DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 12

1шт.

2

84487915

SWITCH

1шт.

3

84191201

SET OF PARTS

SMALL PARTS SEAT SWITCH

1шт.

4

84253109

COMPENSATOR

ASSY, Incl 3

1шт.

5

87331929

SET OF PARTS

ASSY, Incl 6, 11

1шт.

6

9971715

HANDLE

1шт.

7

47540052

KIT

1шт.

Mounting Parts for ref. 5, ref. 8 and ref. 10, Order Separately

1шт.

8

47540079

ISOLATOR

ASSY, Incl 9, 12

1шт.

9

82034956

HANDLE

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

ADJUSTMENT RAIL, Incl in 5

1шт.

12

NSS

NOT SOLD SEPARAT

For/Aft ISOLATOR, Incl in 8

1шт.
