(90.124.AE[02]) - VAR - 332850 - DRIVER SEAT, DELUXE SUSPENSION SEAT

Запчасти Case IH FARMALL 115U (90.124.AE[02]) - VAR - 332850 - DRIVER SEAT, DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

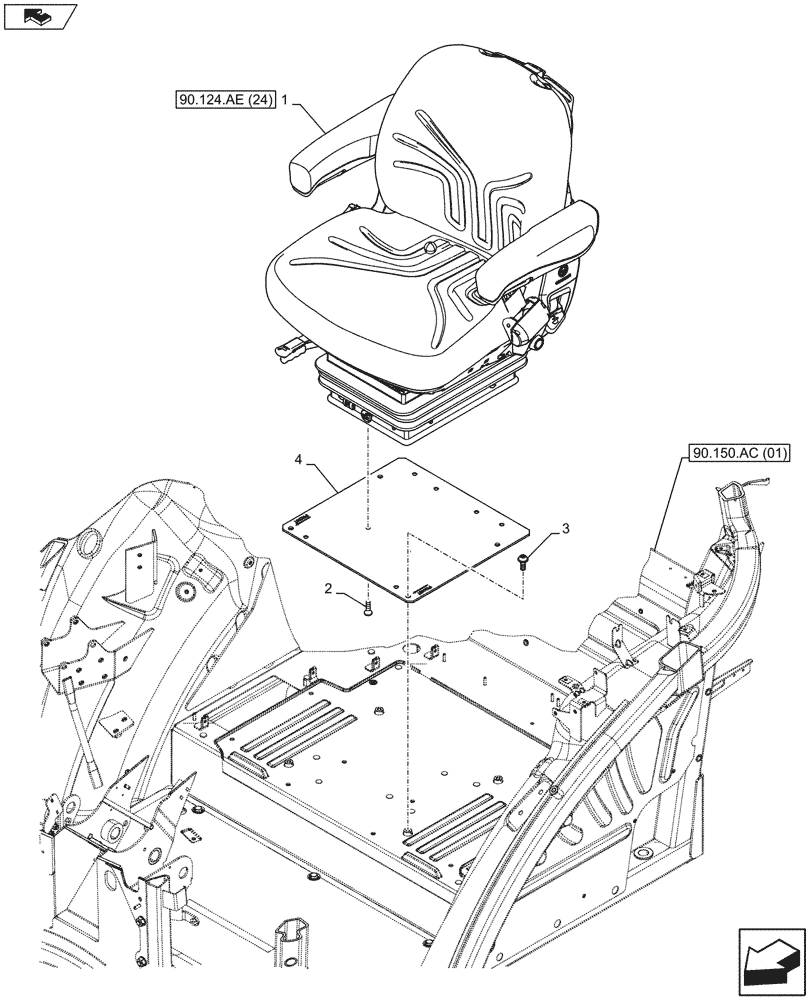

Схема запчастей Case IH FARMALL 115U - (90.124.AE[02]) - VAR - 332850 - DRIVER SEAT, DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
home
1
3
4
2
90.124.ae (24)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476146

DRIVER SEAT

1шт.

2

14442024

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

4

84469342

PLATE

1шт.

Выбрано товаров: 4
