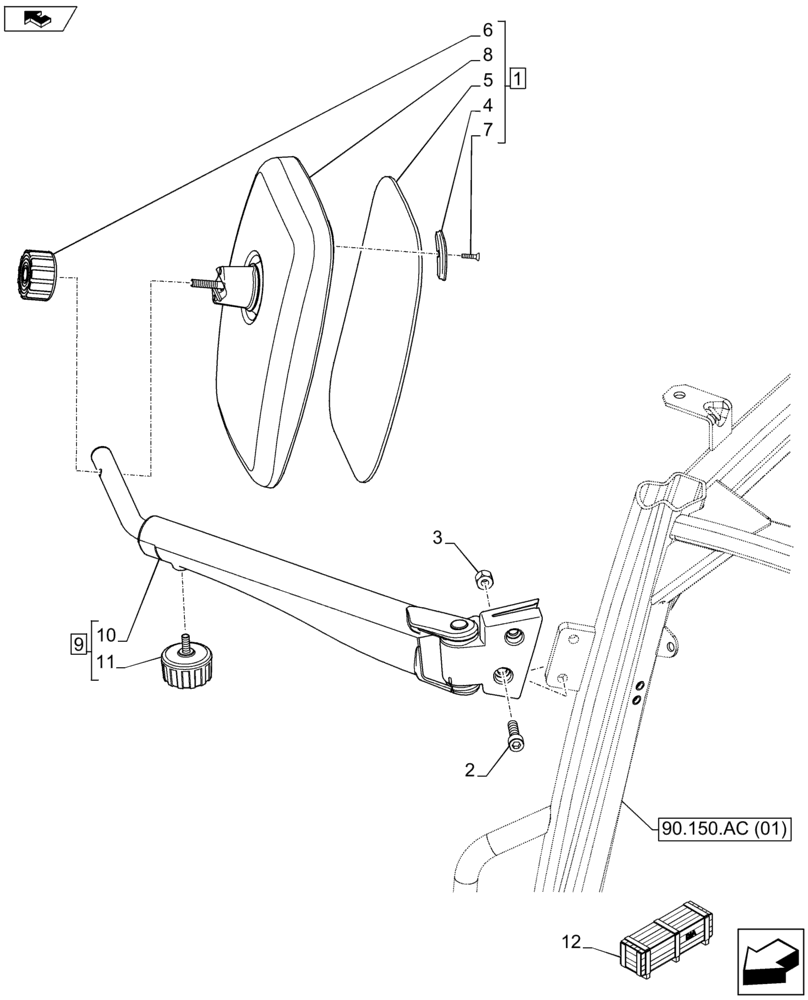

Запчасти Case IH FARMALL 115U (90.118.BM[01]) - VAR - 330879 - TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87339177

MIRROR ASSY.

Incl 4 - 8

2шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

87531094

BRACKET

4шт.

5

82035218

MIRROR,300mm x 200mm

1шт.

6

82016257

KNOB

1шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

9

87314381

MIRROR ARM

ASSY, LH, Incl 10, 11

1шт.

9

84398575

MIRROR ARM

ASSY, RH, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Telescopic Arm, Incl in 9

1шт.

11

87365131

KNOB

1шт.

12

718837080

DIA KIT, TRACTOR

2 Telescopic Mirrors External Rear View, Incl 1 - 11

1шт.
