(90.116.AG[02]) - VAR - 331870, 390436, 744714 - REAR FENDER, GUARD

Запчасти Case IH FARMALL 115U (90.116.AG[02]) - VAR - 331870, 390436, 744714 - REAR FENDER, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

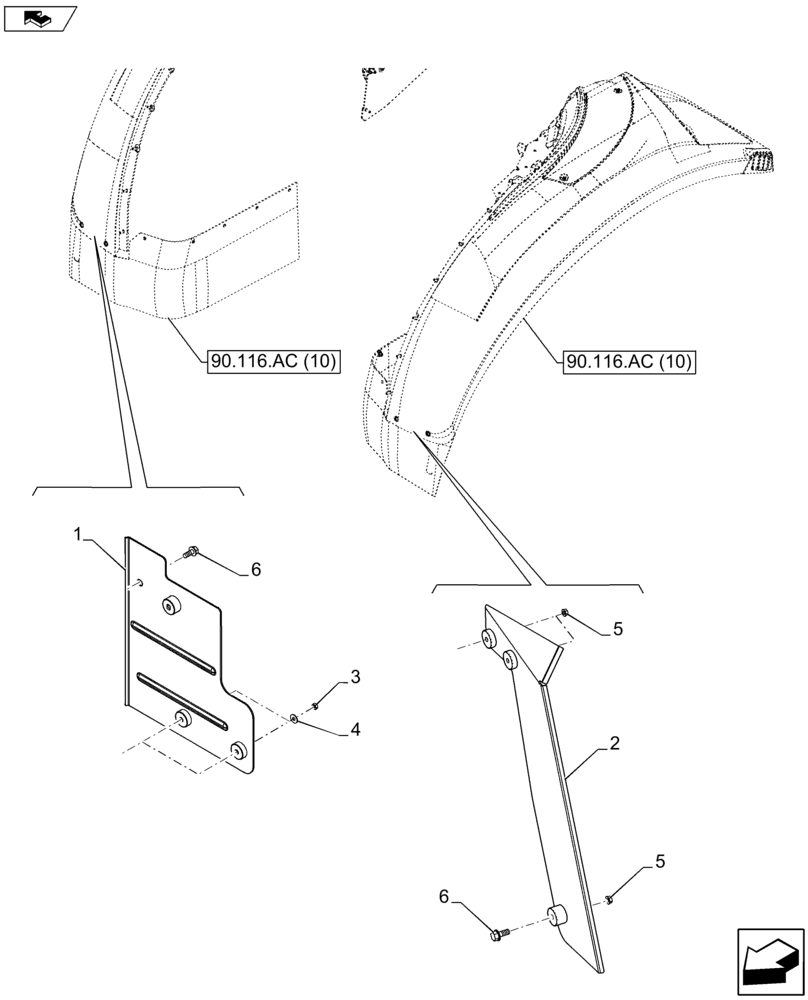

Схема запчастей Case IH FARMALL 115U - (90.116.AG[02]) - VAR - 331870, 390436, 744714 - REAR FENDER, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (10)
4
90.116.ac (10)
2
6
1
3
5
5
home
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84547297

GUARD

1шт.

2

47649131

GUARD

1шт.

3

16100814

NUT,M8, Cl 8, DAC

2шт.

4

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 6
