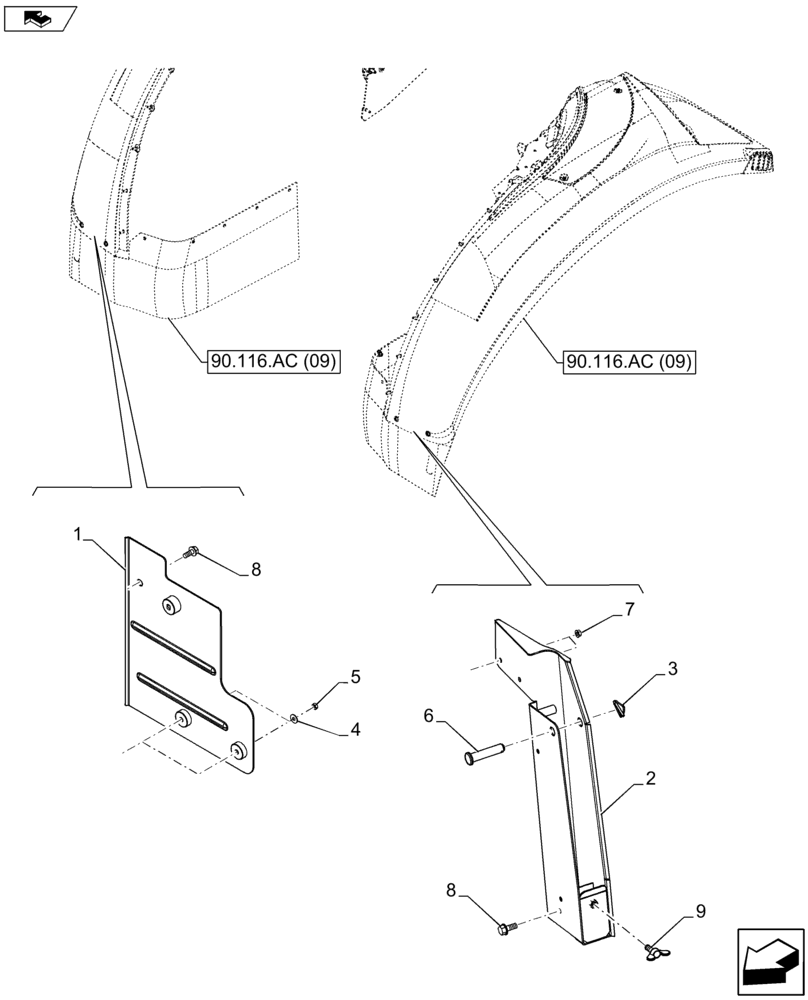

Запчасти Case IH FARMALL 115U (90.116.AG[01]) - VAR - 390436 - REAR FENDER, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84547297

GUARD

1шт.

2

47692166

GUARD

1шт.

3

44903774

LOCK PIN,4.8mm OD x 40mm L

1шт.

4

16100814

NUT,M8, Cl 8, DAC

2шт.

5

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

6

47396827

CLEVIS PIN

1шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

9

84492240

SCREW,Wing, M10 x 30mm

1шт.
