(90.116.AC[11]) - VAR - 331870 - REAR FENDER, PROTECTION FOR SWITCH

Запчасти Case IH FARMALL 115U (90.116.AC[11]) - VAR - 331870 - REAR FENDER, PROTECTION FOR SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

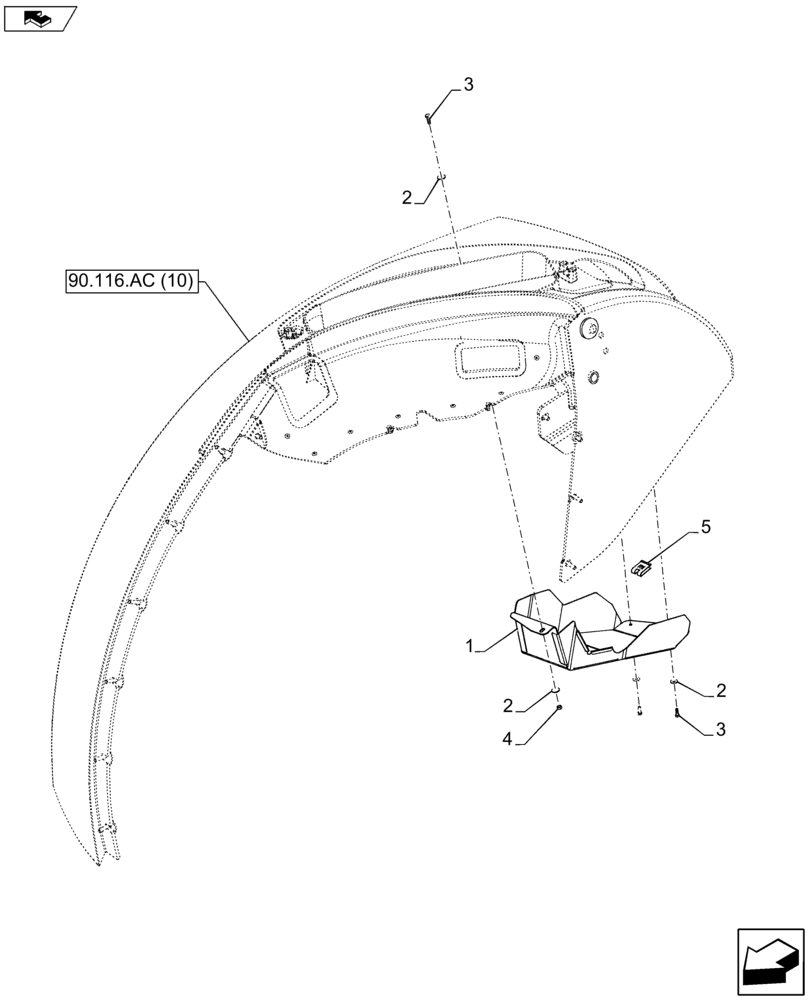

Схема запчастей Case IH FARMALL 115U - (90.116.AC[11]) - VAR - 331870 - REAR FENDER, PROTECTION FOR SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
2
90.116.ac (10)
2
2
4
5
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47632366

BRACKET

LH

1шт.

1

47632380

BRACKET

RH

1шт.

2

13577701

WASHER,5.15mm ID x 15mm OD x 1.2mm Thk

8шт.

3

10977834

BOLT,Hex, M5 x 16mm, Cl 10.9, Full Thd

6шт.

4

86509265

NUT,M5, Cl 10

2шт.

5

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

4шт.
