(90.116.AC[05]) - VAR - 333486 - FRONT FENDER, TOP COVER, LH

Запчасти Case IH FARMALL 115U (90.116.AC[05]) - VAR - 333486 - FRONT FENDER, TOP COVER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

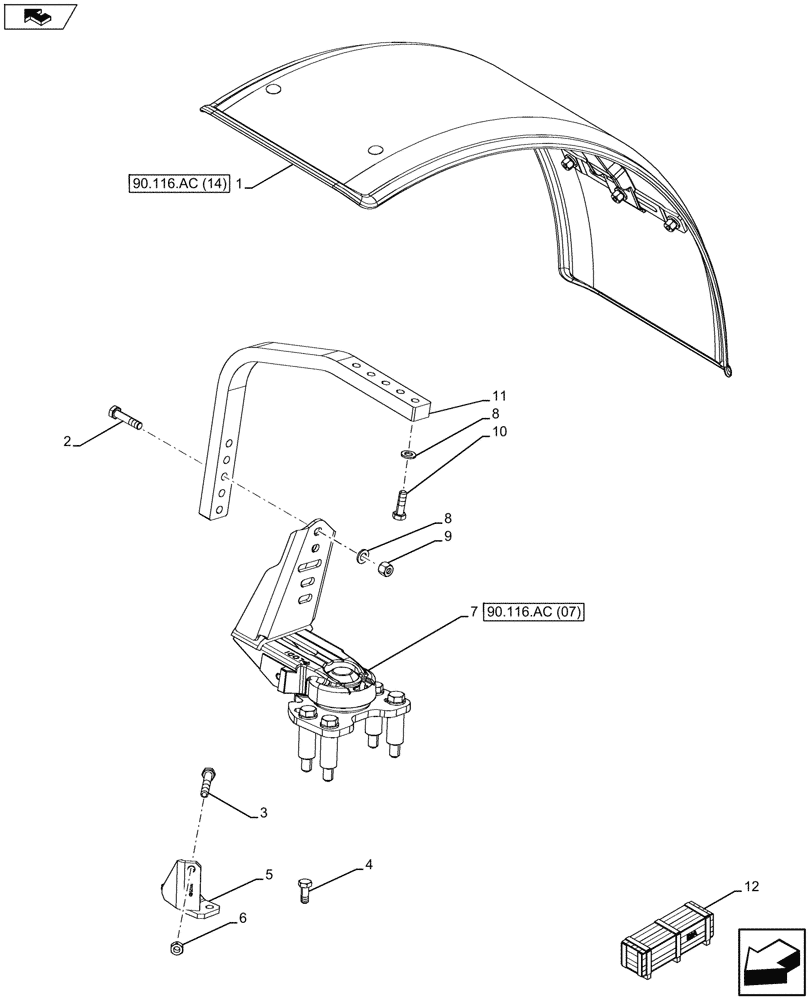

Схема запчастей Case IH FARMALL 115U - (90.116.AC[05]) - VAR - 333486 - FRONT FENDER, TOP COVER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (07)
4
2
home
8
1
8
10
11
12
5
6
3
home
9
7
90.116.ac (14)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600020

FRONT FENDER

ASSY, LH

1шт.

see also Figure 90.116.AC 14

1шт.

2

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

2шт.

3

15541421

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

1шт.

4

15540434

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

5

87609919

BRACKET

LH

1шт.

6

16101521

NUT,M12 x 1.25, Cl 10

1шт.

7

87599910

SUPPORT

LH

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

9

16105014

LOCK NUT,M12 x 1.25

2шт.

10

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

11

82027913

SUPPORT

1шт.
