(90.110.AH[02]) - VAR - 334144, 335683 - INSTRUMENT PANEL, CONSOLE

Запчасти Case IH FARMALL 115U (90.110.AH[02]) - VAR - 334144, 335683 - INSTRUMENT PANEL, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

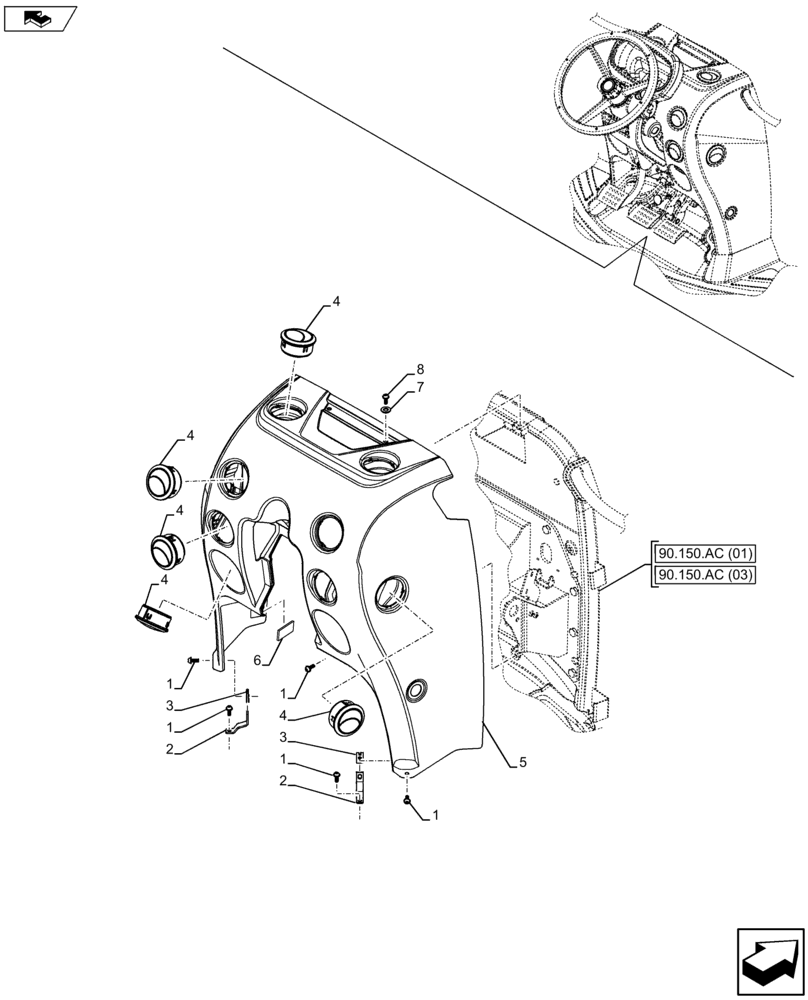

Схема запчастей Case IH FARMALL 115U - (90.110.AH[02]) - VAR - 334144, 335683 - INSTRUMENT PANEL, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
1
4
4
home
6
1
3
1
1
4
3
4
7
4
5
home
2
8
2
90.150.ac (03)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

2

84336087

BRACKET

2шт.

3

14371774

SPRING NUT,M6, U, 12mm long

2шт.

4

82022331

VENT

10шт.

5

84312012

INSTRUMENT PANEL

1шт.

6

84285196

FASTENER,25mm x 50mm x 3.77mm Thk

8шт.

7

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

2шт.

8

14441327

HEX SOC SCREW,Flat Csk Hd, M6 x 16mm, Cl 8.8

2шт.

Выбрано товаров: 8
