(90.105.CQ[02]) - VAR - 334144 - INSULATOR, BULKHEAD

Запчасти Case IH FARMALL 115U (90.105.CQ[02]) - VAR - 334144 - INSULATOR, BULKHEAD (90) - PLATFORM, CAB, BODYWORK AND DECALS

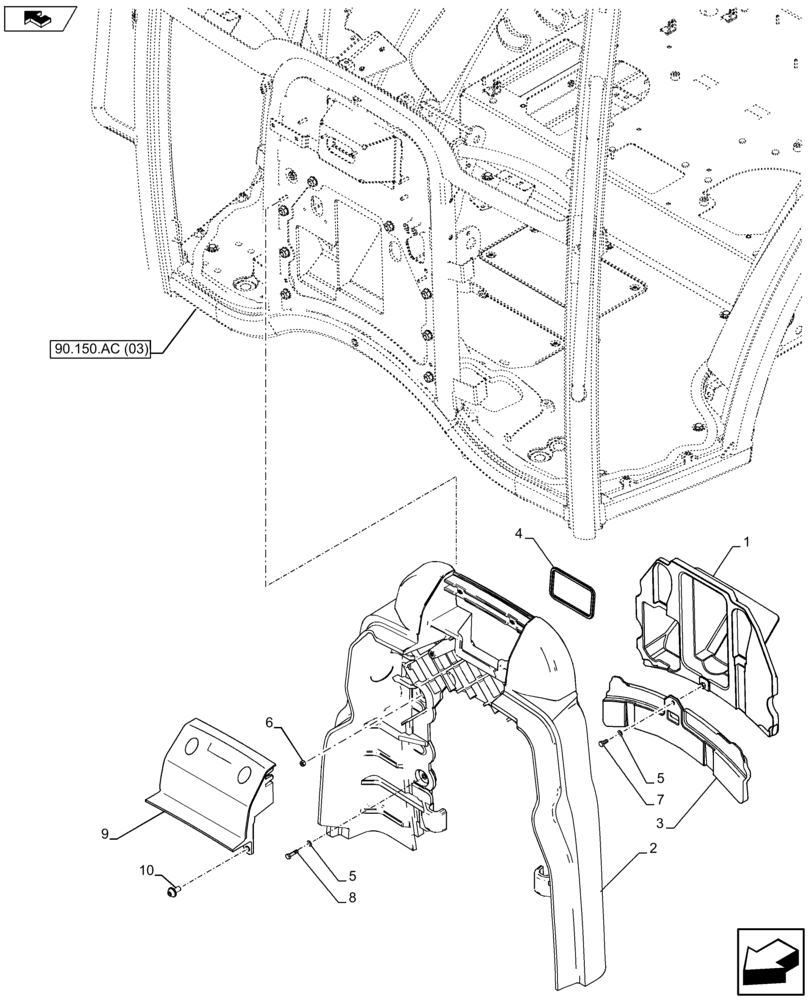

Схема запчастей Case IH FARMALL 115U - (90.105.CQ[02]) - VAR - 334144 - INSULATOR, BULKHEAD (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
home
5
7
2
5
8
4
home
9
6
90.150.ac (03)
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84591993

INSULATOR

Bulkhead

1шт.

2

84592026

INSULATOR

Bulkhead

1шт.

3

84417854

INSULATOR

Bulkhead

1шт.

4

84469346

SEAL

1шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

7шт.

6

10720114

NUT,Hex, M6 x 1

4шт.

7

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

8

10902634

SCREW,Hex, 6mm OD x 25mm L

2шт.

9

84592027

COVER

1шт.

10

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.
