(90.102.AW[03]) - VAR - 390500 - HOOD, CLOSING SUPPORTS

Запчасти Case IH FARMALL 115U (90.102.AW[03]) - VAR - 390500 - HOOD, CLOSING SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

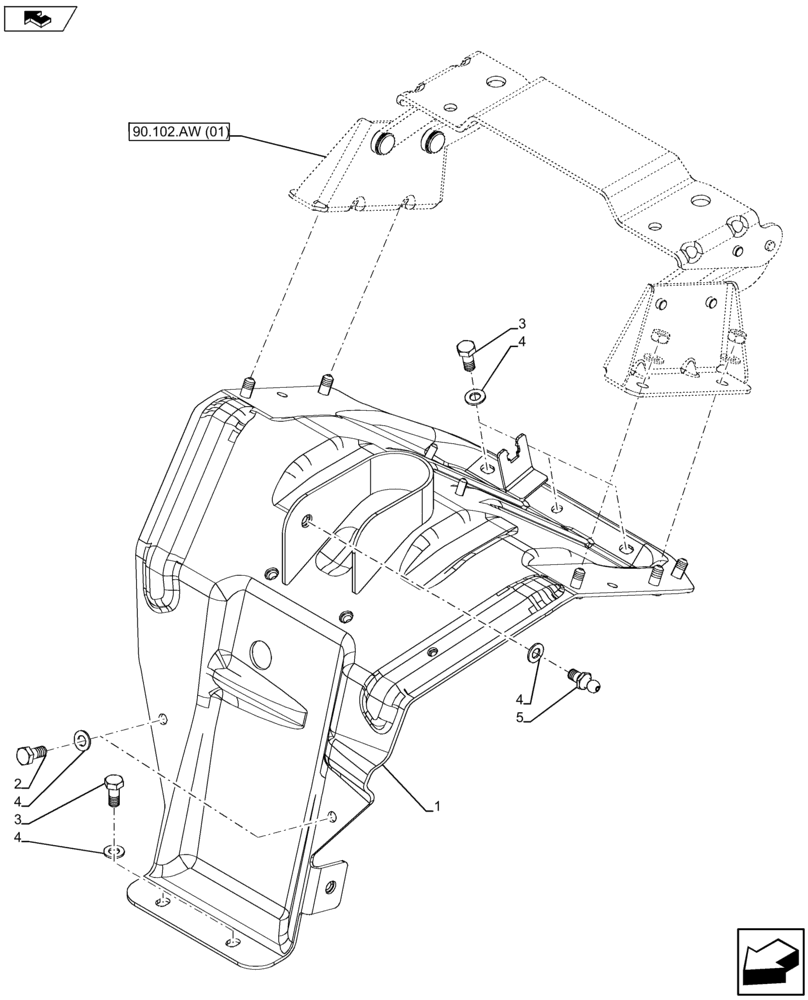

Схема запчастей Case IH FARMALL 115U - (90.102.AW[03]) - VAR - 390500 - HOOD, CLOSING SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
5
4
home
90.102.aw (01)
3
4
1
4
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84478152

SUPPORT

1шт.

2

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

3

16043414

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

5шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

5

87603835

BALL STUD,10mm D, M8 x 13mm

1шт.
