(90.102.AW[02]) - VAR - 390500 - HOOD, CLOSING SUPPORTS

Запчасти Case IH FARMALL 115U (90.102.AW[02]) - VAR - 390500 - HOOD, CLOSING SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

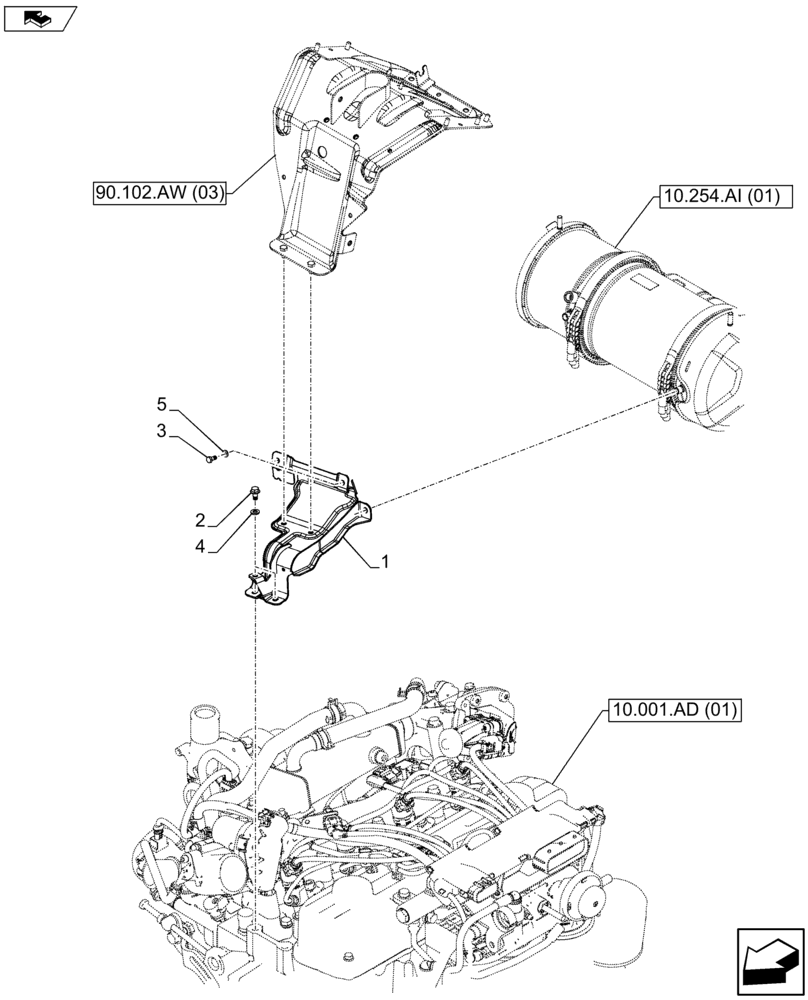

Схема запчастей Case IH FARMALL 115U - (90.102.AW[02]) - VAR - 390500 - HOOD, CLOSING SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
10.254.ai (01)
3
home
1
5
90.102.aw (03)
2
10.001.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84538400

SUPPORT

1шт.

2

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

2шт.

3

16043414

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

2шт.

4

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.
