(90.102.AW[01]) - VAR - 390500 - HOOD, CLOSING SUPPORTS

Запчасти Case IH FARMALL 115U (90.102.AW[01]) - VAR - 390500 - HOOD, CLOSING SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

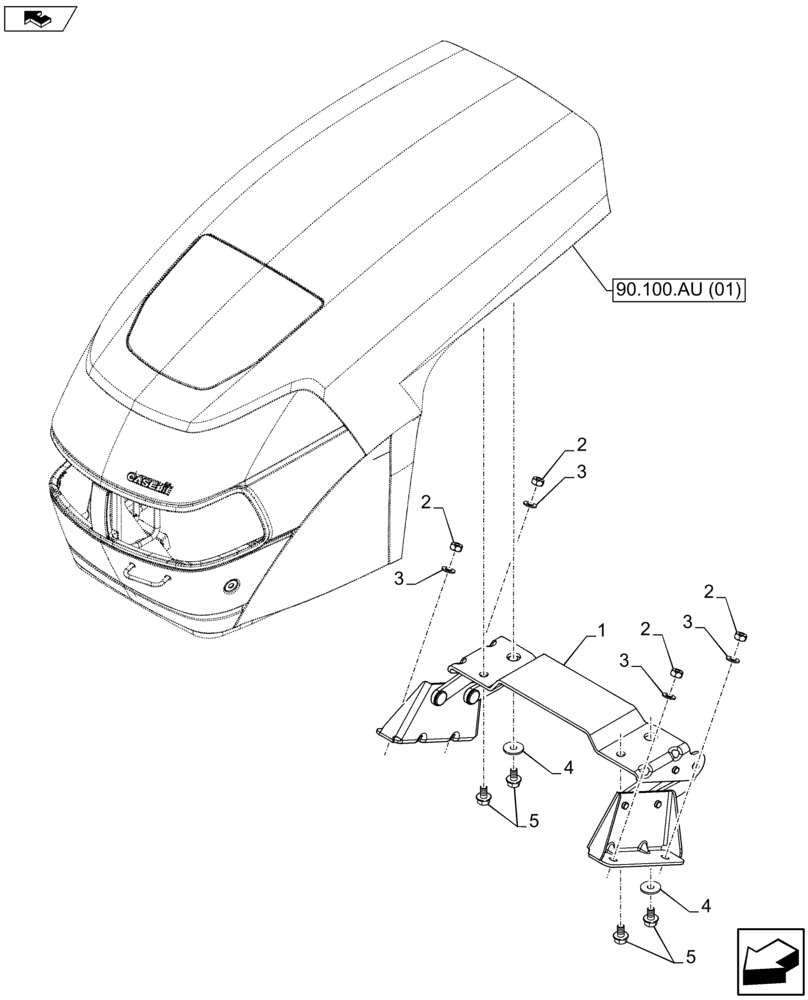

Схема запчастей Case IH FARMALL 115U - (90.102.AW[01]) - VAR - 390500 - HOOD, CLOSING SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
2
90.100.au (01)
3
2
5
2
5
4
3
home
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479168

HINGE

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

2шт.

5

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.
