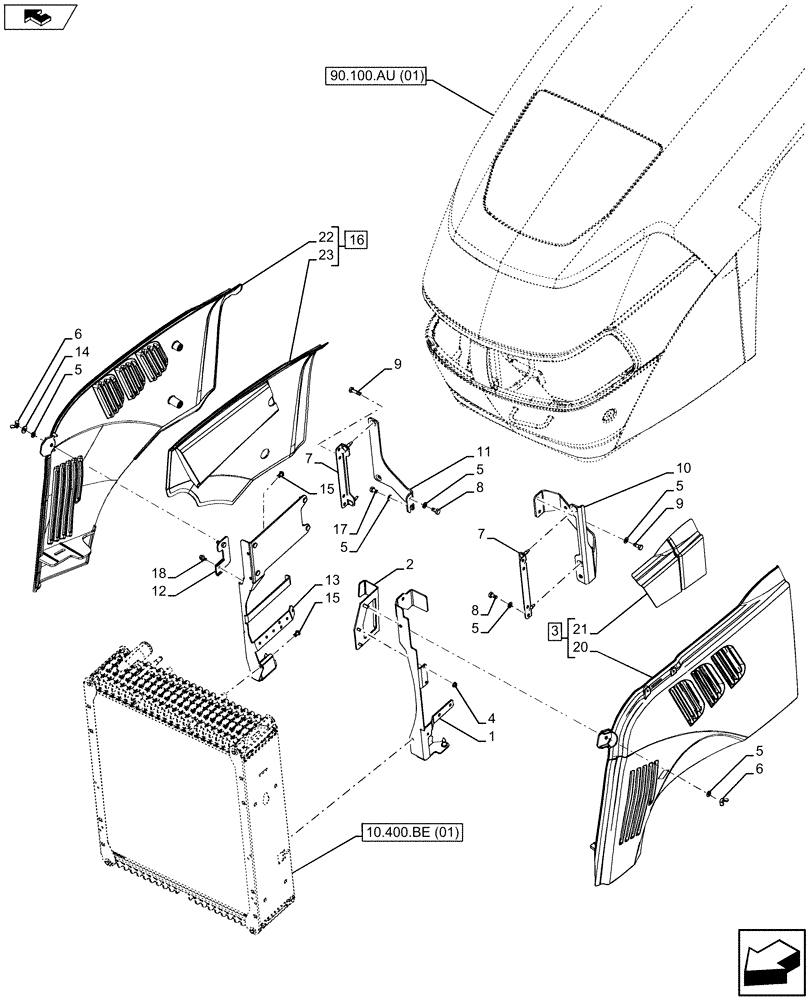

Запчасти Case IH FARMALL 115U (90.100.AC[01]) - VAR - 334144, 335683 - ENGINE HOOD PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47396552

BRACKET

Radiator, LH

1шт.

2

47396551

BRACKET

Radiator, LH

1шт.

3

47404706

SIDE PANEL

ASSY, LH, Incl 20, 21

1шт.

4

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

10шт.

6

10102001

WING NUT,Wing Nut, M8 x 1.25

2шт.

7

84497480

BRACKET

2шт.

8

86625007

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

9

16043414

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

2шт.

10

47451555

BRACKET

1шт.

11

47454492

BRACKET

1шт.

12

84535050

BRACKET

Radiator, RH

1шт.

13

47366849

BRACKET

Radiator, RH

1шт.

14

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

15

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

5шт.

16

84494768

SIDE PANEL

ASSY, RH, Incl 22, 23

1шт.

17

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

18

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

1шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

20

NSS

NOT SOLD SEPARAT

Panel, Incl in 3

1шт.

21

84527510

SHIELD

1шт.

22

84494869

SHIELD

1шт.

23

NSS

NOT SOLD SEPARAT

Panel, Incl in 16

1шт.
