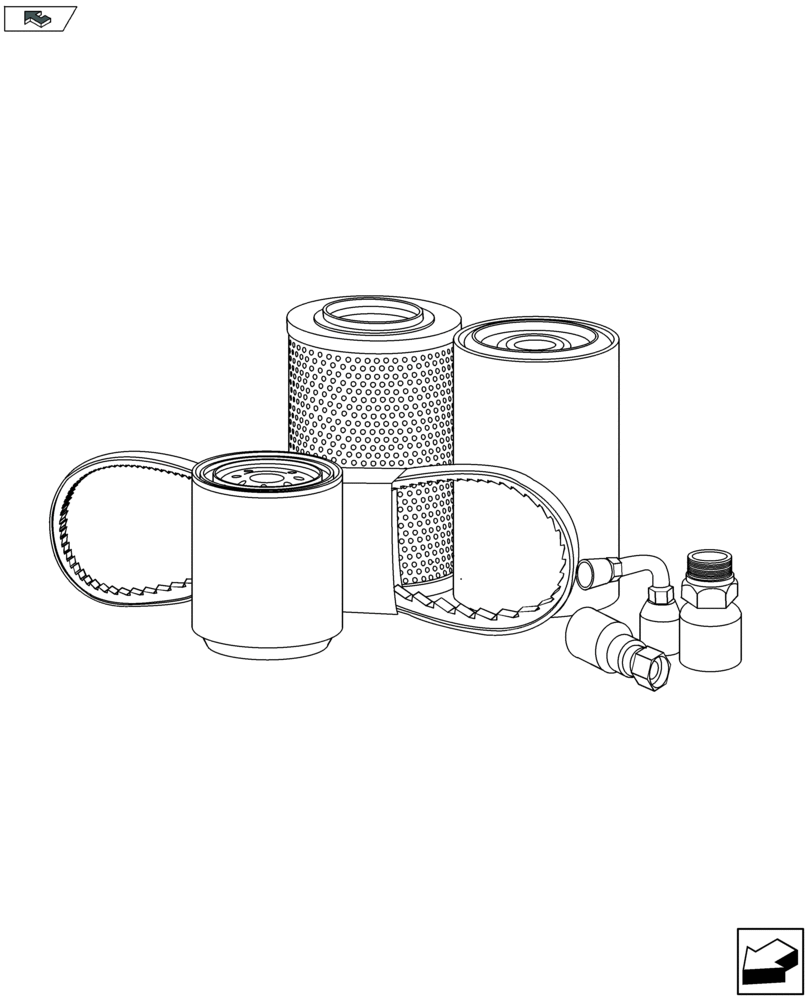

Запчасти Case IH FARMALL 115U (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

1

5801506502

SENSOR

Water in Fuel on Engine Fuel Filter

1шт.

2

5801477100

SENSOR

Fuel Heater

1шт.

3

5801474160

SENSOR

Fuel Pressure

1шт.

4

504231722

DIPSTICK

Engine Oil

1шт.

5

5801649074

THERMOSTAT

Engine

1шт.

6

500382599

SENSOR,Temperature

Engine Oil

1шт.

7

5801450757

CYLINDER HEAD GASKET,0.80mm Thk

Cylinder Head

1шт.

8

5801446795

GASKET

Cylinder Head Cover

1шт.

9

504164360

GASKET

Engine Oil Pan

1шт.

10

504379050

GASKET

Camshaft Front Cover

1шт.

11

84557747

BRAKE DISC

N 653

2шт.

12

47394940

BRAKE DISC

Extended Life

1шт.

13

84547727

FILLER CAP,M59, Vented

Fuel Tank, No Lockable

1шт.

14

84417843

FUEL GAUGE

Fuel Level, 362mm

1шт.

15

5190752

SEAL KIT

Incl in P/N 5192069, Trailer Brake Valve

1шт.

16

84286249

SENSOR

DPF Delta Pressure

1шт.

17

47478866

TEMPERATURE SENDER,35mm L

on Muffler, Egt, 35mm

1шт.

18

84286040

SENSOR

Lambda Uhego

1шт.

19

84539252

SENSOR

Air Temperature

1шт.

20

47478894

TEMPERATURE SENDER,50mm L

on Muffler, Egt, 50mm

1шт.

21

84552308

SENSOR

Restriction, Air Cleaner

1шт.

22

82022744

CAP,Female, Vented, Non-Locking

Radiator Tank

1шт.

23

B510248

BATTERY, WET

12V-125AH

1шт.

23

BCMD4W

WET BATTERY,D4, 12V, 1200 CCA

Wet, 1200 CCA, US only

1шт.

24

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch, High Current

1шт.

25

47383500

ALTERNATOR,14V, 120A, W/Pulley

120A

1шт.

26

82028133

SENSOR,3/8"-18

Temperature, Transmission Oil

1шт.

27

84243033

SENSOR

Speed, Transmission Gear

1шт.

28

84541361

SENSOR

PTO Speed

1шт.

29

84407735

PRESSURE SWITCH,0.40 Bar

Transmission Oil

1шт.

30

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

Angle Position

2шт.

31

47127225

BRAKE DISC

Parking Brake

4шт.

32

5194880

O-RING KIT

O-ring, Incl in P/N 5197006, Hydraulic Oil Filter, Steering

1шт.

33

87601759

SEAL KIT

Incl in P/N 84555761, Hydraulic Pump 80l/min (32cc), Element

1шт.

34

47129450

SEAL KIT

Incl in P/N 5192186, Remote Valve Inlet Plate

1шт.

35

5190771

SEAL KIT

O-ring, Incl in P/N 84175671, Remote Valve Element

1шт.

36

1-32-773-161

SEAL KIT

Incl in P/N 84175671, Remote Valve Element

1шт.

37

87382012

SEAL KIT

Incl in P/N 87381964 & 87381963, Male Quick Coupling

1шт.

38

84157157

RELAY,12V, 20A, Micro

Micro, 12V-20A, on Main Fuse Box

1шт.

39

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

on Pedal

2шт.

40

87661284

SENSOR

Rear HPL, Force

2шт.

41

84530736

SEAL KIT

Incl in P/N 84530731, Front HPL Cylinder

1шт.

42

47610925

FILLER CAP,Male, Vented, Lockable

Brake Oil Reservoir

1шт.

43

47357630

WIPER MOTOR

Front

1шт.

44

84488645

WIPER ARM,350mm L

Front, Single, 350mm

2шт.

45

84488646

WIPER BLADE,450mm L

Front, Single, 450mm

2шт.

46

84416717

IGNITION KEY

Key, Ignition, Case IH

2шт.

47

84416718

IGNITION SWITCH,50A

50A

1шт.

48

84579703

SENSOR

Air Conditioner, Temperature

2шт.

49

84341983

LOCK KEY

Cab Air Filter Retainer

4шт.

50

47557971

WIPER MOTOR,12V, 1 SPD, 88DEG Rear

Rear

1шт.

51

16847990

12V/5W

BULB,W5W, 12V, 5W

1шт.

52

47429996

BULB,Type 886, Halogen, 12V, 50W

2шт.

53

87283179

BULB,H4, 12V, 60/55W

2шт.

54

9703399

BULB,H3, 12V, 55W

H3, 12V-55W

4шт.

55

10857790

BULB,R10W, 12V, 5W

2шт.

56

14144690

BULB,P21/5W, 12V, 21/5W

4шт.

57

14145090

BULB,H7, 12V, 55W

H7 12V

2шт.

58

86616248

BULB,H1, 12V, 55W

1шт.

59

82017871

RELAY,12V, 20A

Isobus

1шт.

60

84271717

RELAY,12V, 50A

Isobus

1шт.

61

84577117

RELAY,12V, 2A

Isobus

1шт.

62

84465659

RADAR

Ground Speed, Japan

1шт.

63

14148190

BULB,P21W, 12V, 21W

4шт.

64

84465662

SENSOR

True Ground Speed

1шт.

65

87522595

FUSE,7.5A, Mini, Brown

1шт.

66

10401190

FUSE,20A, Mini, Yellow

1шт.

67

84153830

FUSE,5A, Mini, Beige

Minival, 5A

1шт.

68

87522597

FUSE,10A, Mini, Red

1шт.

69

87524877

FUSE,15A, Mini, Blue

Minival, 15A

1шт.

70

5173264

FUSE,30A, Maxi, Green

Maxival, 30A

1шт.

71

84157159

FUSE,40A, Maxi, Orange

Maxival, 40A

1шт.
