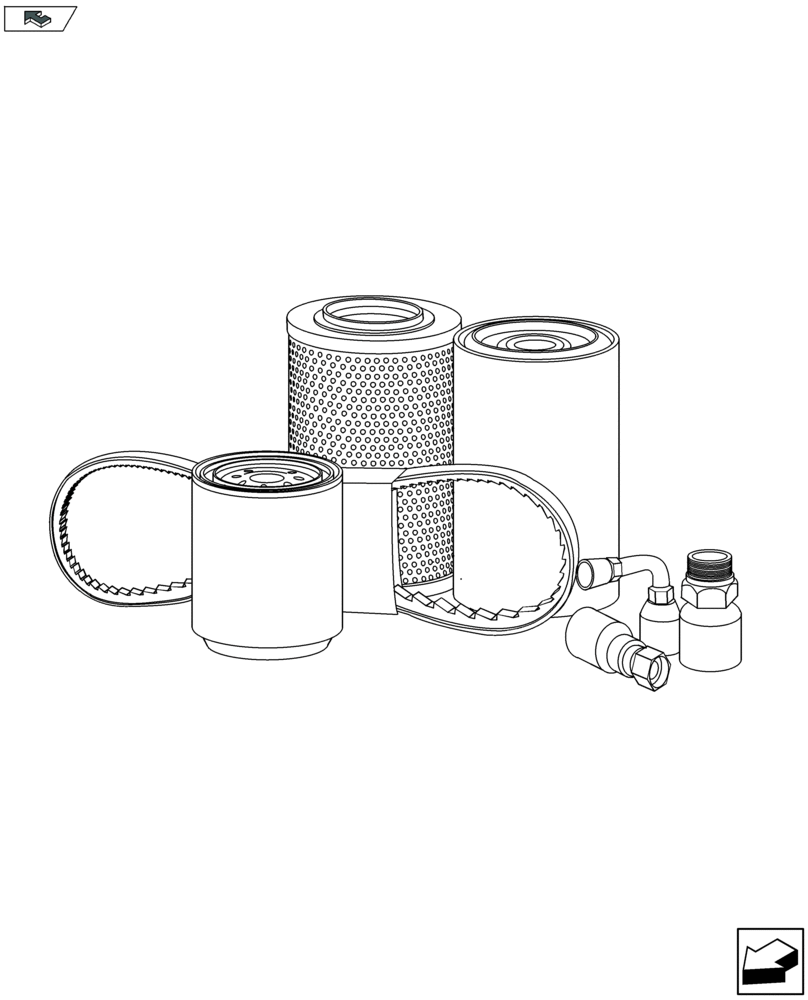

Запчасти Case IH FARMALL 115U (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

84479228

AIR FILTER

Cartridge, Main

1шт.

2

84479225

AIR FILTER

Cartridge, Safety

1шт.

3

84413370

FILTER PARTICULATE

DPF Module

1шт.

3

84413370R

REMAN-FLTR PARTICUL.

1шт.

3

84413370C

CORE-FLTR PARTICUL.

Return Number

1шт.

4

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

5

47450037

FILTER CARTRIDGE,109mm OD x 173mm L, M18 x 1.5

Fuel, Primary, on Engine

1шт.

6

47450038

FILTER CARTRIDGE,97mm OD x 195.5mm L, M16 x 1.5

Fuel, Water Separator, onEngine

1шт.

7

5194879

ELEMENT

Hydraulic Oil, Transmission/Steering

1шт.

8

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

Lifter/Suction

1шт.

9

47398208

BELT,21.36mm W x 782mm L, 6 Ribs

A/C, 6 Ribs, 781.9mm

1шт.

10

47565055

CAB FILTER,Cab, 374mm L x 99mm W x 51mm Thk, Nonwoven

Nonwowen, Air

2шт.

11

84577445

CAB FILTER,Cab, 207.5mm L x 149.5mm W x 28mm Thk, Paper

Paper, Air

2шт.

12

504075145

ELEMENT

Breather, on Engine

1шт.

13

47465067

KIT

A/C Condenser

1шт.

14

84412878

BELT,28.5mm W x 1425mm L, 8 Ribs

Main Drive, 1425.18mm, 8 Ribs

1шт.
