(88.055.AA[04A]) - DIA KIT, TRACTOR, 1 ROTARY BEACON, SUPPORT

Запчасти Case IH FARMALL 115U (88.055.AA[04A]) - DIA KIT, TRACTOR, 1 ROTARY BEACON, SUPPORT (88) - ACCESSORIES

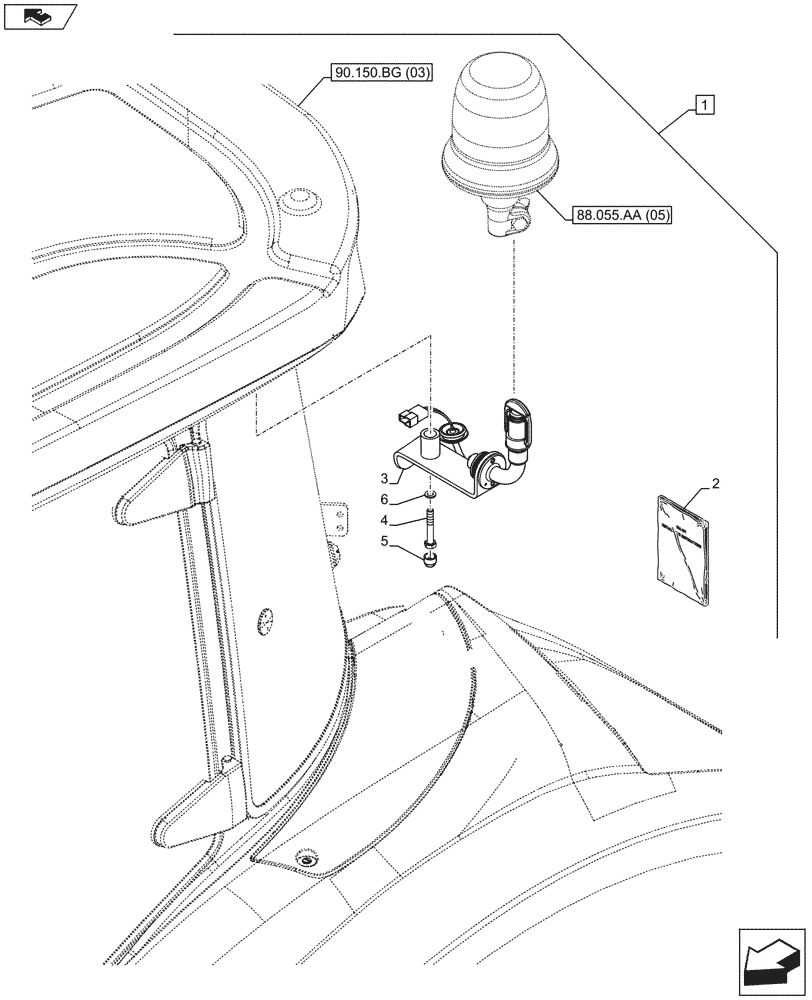

Схема запчастей Case IH FARMALL 115U - (88.055.AA[04A]) - DIA KIT, TRACTOR, 1 ROTARY BEACON, SUPPORT (88) - ACCESSORIES
90.150.bg (03)
4
home
1
6
2
5
3
88.055.aa (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710762080

DIA KIT, TRACTOR

Rotary Beacon, Incl 2 - 6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also 88.055.AA (05) and 88.055.AA (06)

1шт.

2

84560591

INSTRUCTION

1шт.

3

47788366

SUPPORT

1шт.

4

16606124

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

5

87516431

CUP,for M8 Nut

1шт.

6

12602474

WAVE WASHER,Wave, M8.3

1шт.
