(88.055.AA[04]) - DIA KIT, TRACTOR, 1 ROTARY BEACON, SUPPORT

Запчасти Case IH FARMALL 115U (88.055.AA[04]) - DIA KIT, TRACTOR, 1 ROTARY BEACON, SUPPORT (88) - ACCESSORIES

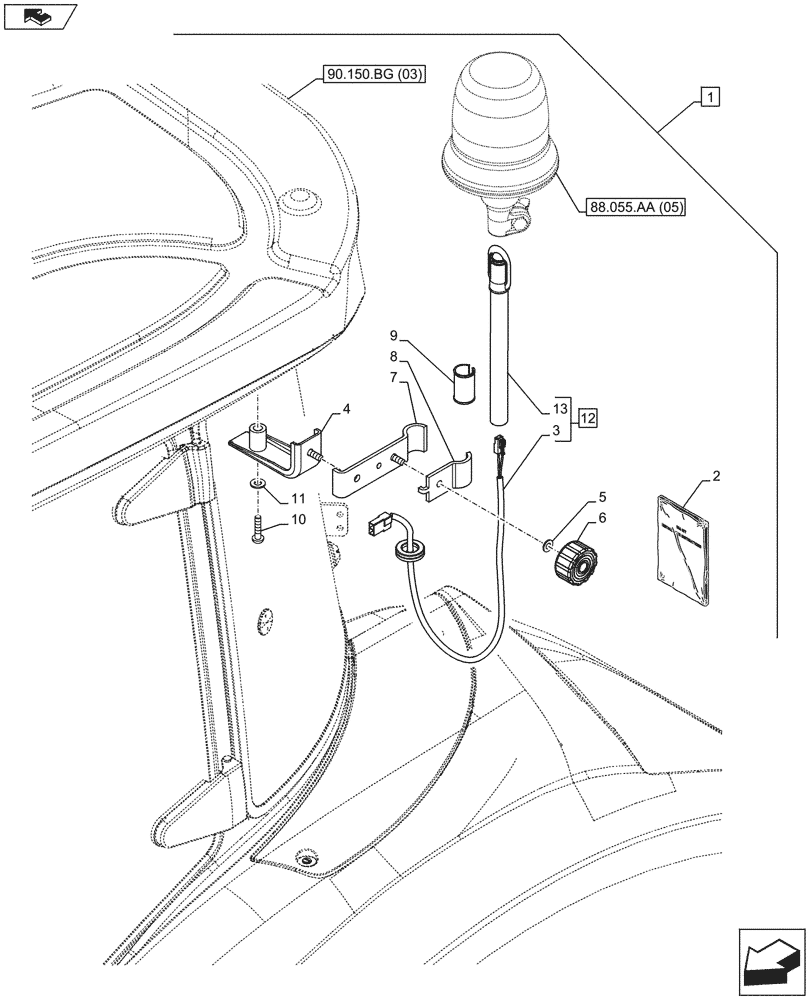

Схема запчастей Case IH FARMALL 115U - (88.055.AA[04]) - DIA KIT, TRACTOR, 1 ROTARY BEACON, SUPPORT (88) - ACCESSORIES
90.150.bg (03)
2
12
1
4
6
9
7
home
3
5
10
11
8
13
88.055.aa (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710762080

DIA KIT, TRACTOR

Rotary Beacon, Incl 2 - 13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also 88.055.AA (05) and 88.055.AA (06)

1шт.

2

84560591

INSTRUCTION

1шт.

3

84591874

WIRE HARNESS

Electrical, Beacon Cable

1шт.

4

84343080

BRACKET

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

82016257

KNOB

2шт.

7

84343028

BRACKET

1шт.

8

82028975

BRACKET

1шт.

9

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

1шт.

10

14302226

SCREW

1шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

12

84592146

WIRE HARNESS

Electrical, Beacon Adapter Whit CA, Assy, Incl 2, 3

1шт.

13

82027653

SUPPORT

1шт.
