(55.518.AT[01]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR

Запчасти Case IH FARMALL 115U (55.518.AT[01]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR (55) - ELECTRICAL SYSTEMS

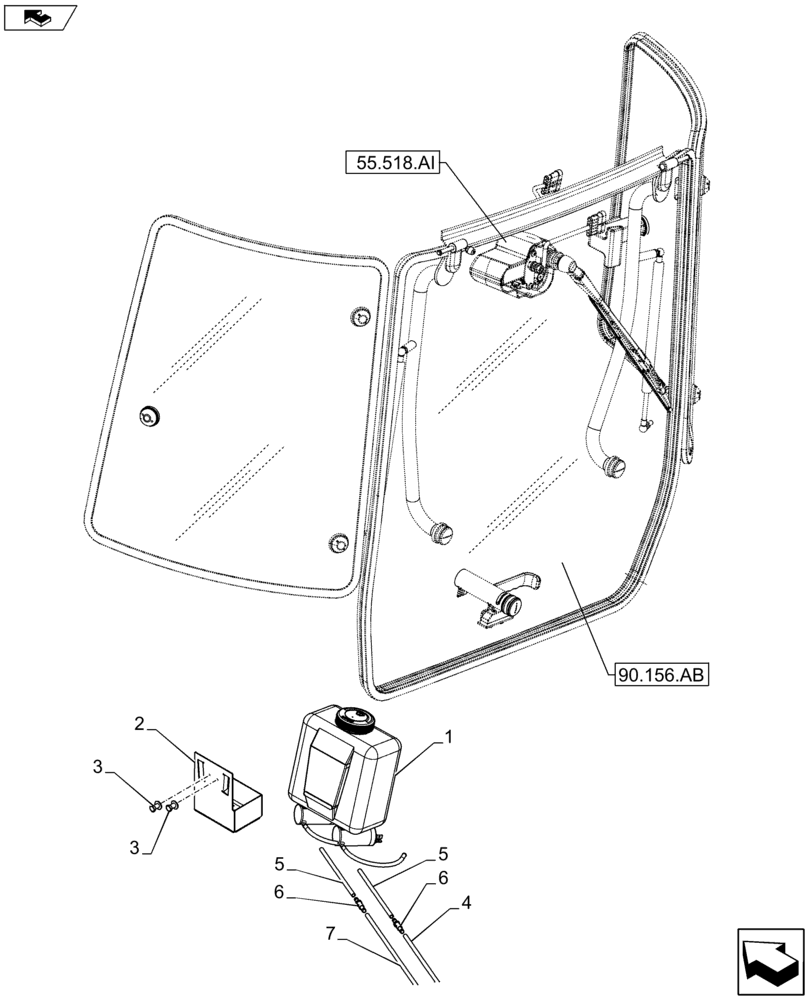

Схема запчастей Case IH FARMALL 115U - (55.518.AT[01]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR (55) - ELECTRICAL SYSTEMS
1
3
5
home
5
3
6
4
90.156.ab
55.518.ai
2
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84605277

TANK

Includes Pump, components NSS

1шт.

2

47483189

SUPPORT

1шт.

3

14642892

POP RIVET,Truss, M4.8 x 14

2шт.

4

84209225

HOSE,4mm ID x 3100mm L

1шт.

5

84209221

HOSE,4mm ID x 150mm L

2шт.

6

5136113

VALVE

2шт.

7

84270726

FLEXIBLE HOSE,4mm ID x 2500 mm L

1шт.

Выбрано товаров: 7
