(55.510.BM[05]) - VAR - 390886 - POWER SOCKET, OUTSIDE - APAC

Запчасти Case IH FARMALL 115U (55.510.BM[05]) - VAR - 390886 - POWER SOCKET, OUTSIDE - APAC (55) - ELECTRICAL SYSTEMS

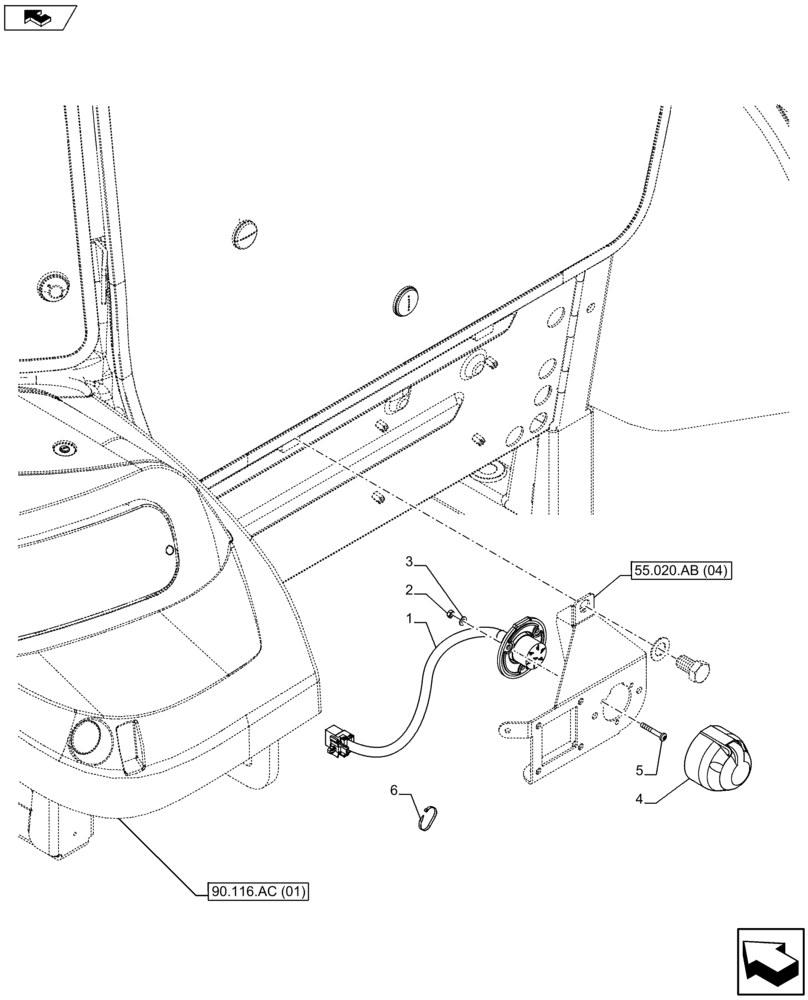

Схема запчастей Case IH FARMALL 115U - (55.510.BM[05]) - VAR - 390886 - POWER SOCKET, OUTSIDE - APAC (55) - ELECTRICAL SYSTEMS
6
55.020.ab (04)
3
2
90.116.ac (01)
5
home
1
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84230588

ELECTRIC CABLE

Trailer Socket

1шт.

2

15896414

NUT,M5, Cl 8

3шт.

3

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

4

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

5

13274914

SCREW,Pan, M5 x 35mm L

3шт.

6

14560187

COLLAR,199mm L

2шт.
