(55.404.BM[05]) - VAR - 335701, 390885 - LAMP, ROOF, ROOF, REAR

Запчасти Case IH FARMALL 115U (55.404.BM[05]) - VAR - 335701, 390885 - LAMP, ROOF, ROOF, REAR (55) - ELECTRICAL SYSTEMS

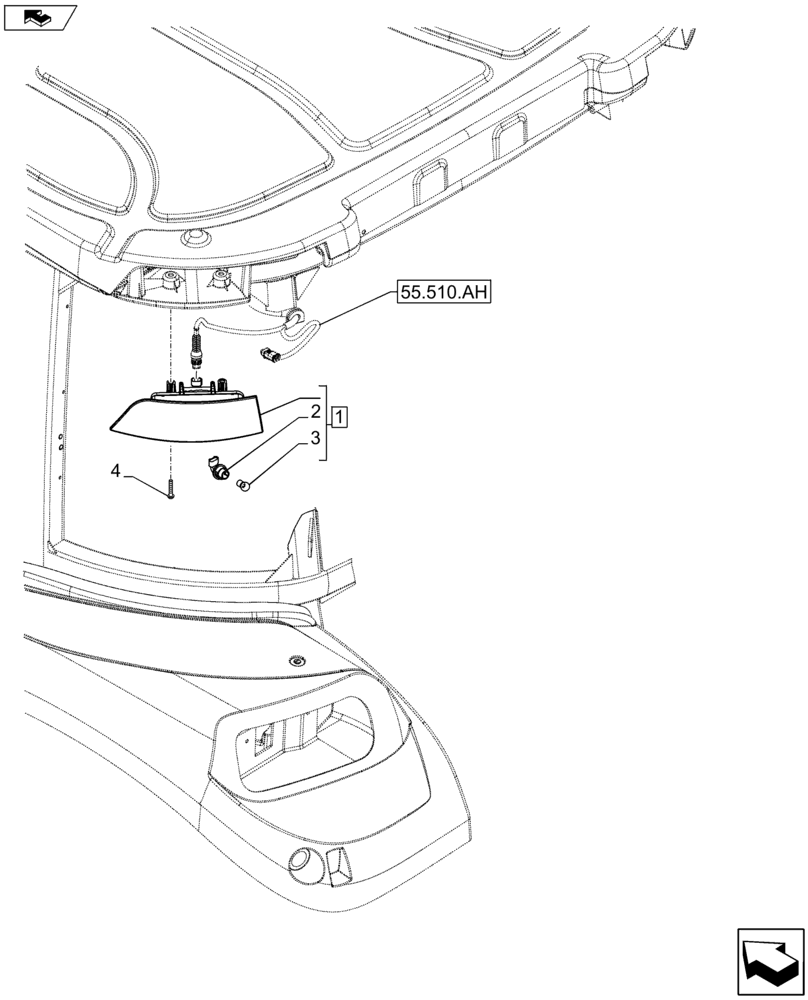

Схема запчастей Case IH FARMALL 115U - (55.404.BM[05]) - VAR - 335701, 390885 - LAMP, ROOF, ROOF, REAR (55) - ELECTRICAL SYSTEMS
1
home
55.510.ah
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Roof, Rear RH, ASSY, Incl 2, 3

1шт.

1

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Roof, Rear LH, ASSY, Incl 2, 3

1шт.

2

87304554

HOLDER

1шт.

3

14148190

BULB,P21W, 12V, 21W

1шт.

4

84187820

SCREW,Torx Pan Hd, M6 x 35mm, Cl 8.8

4шт.
