(55.404.AC[03A]) - VAR - 335916 - 2 ROTARY BEACON, SUPPORT - BEGIN YR 03-JUL-2015

Запчасти Case IH FARMALL 115U (55.404.AC[03A]) - VAR - 335916 - 2 ROTARY BEACON, SUPPORT - BEGIN YR 03-JUL-2015 (55) - ELECTRICAL SYSTEMS

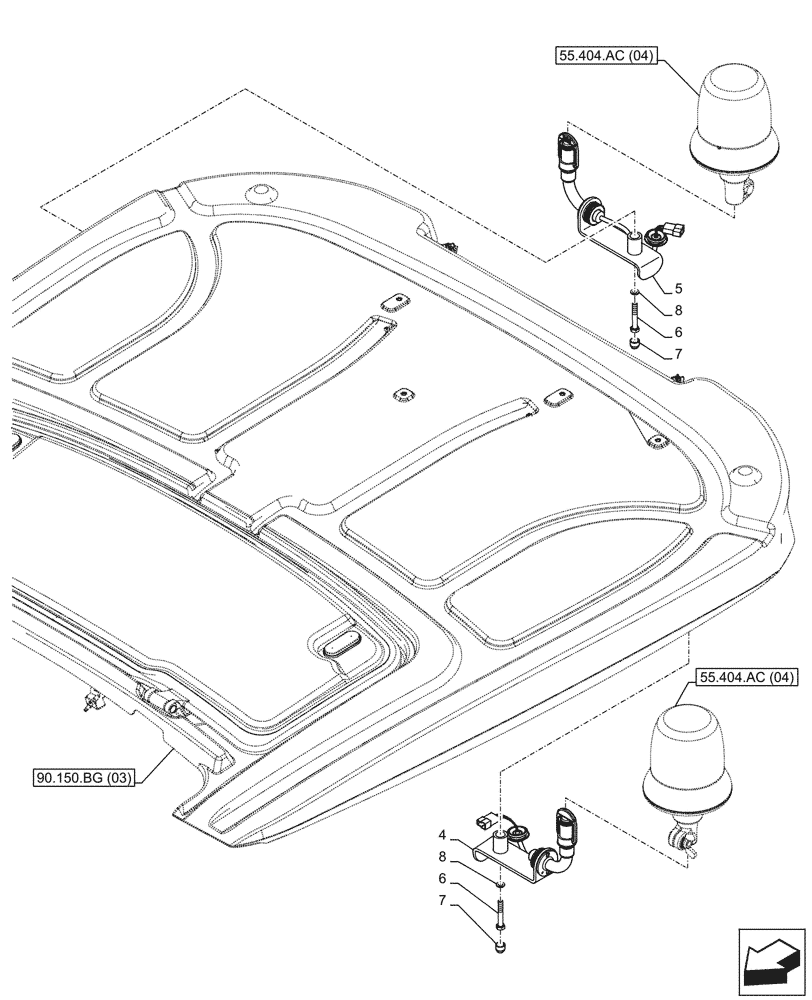

Схема запчастей Case IH FARMALL 115U - (55.404.AC[03A]) - VAR - 335916 - 2 ROTARY BEACON, SUPPORT - BEGIN YR 03-JUL-2015 (55) - ELECTRICAL SYSTEMS
90.150.bg (03)
7
7
8
6
6
55.404.ac (04)
4
8
55.404.ac (04)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87723255

BEACON,12V, 55W, Amber

ASSY, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Beacon, Incl in 1

2шт.

3

14151095

BULB,H1, 12V, 55W

2шт.

4

47788366

SUPPORT

LH

1шт.

5

47788367

SUPPORT

RH

1шт.

6

16606124

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

87516431

CUP,for M8 Nut

2шт.

8

12602474

WAVE WASHER,Wave, M8.3

2шт.
