(55.404.AC[01A]) - VAR - 334916, 335702 - 1 ROTARY BEACON, SUPPORT - BEGIN YR 03-JUL-2015

Запчасти Case IH FARMALL 115U (55.404.AC[01A]) - VAR - 334916, 335702 - 1 ROTARY BEACON, SUPPORT - BEGIN YR 03-JUL-2015 (55) - ELECTRICAL SYSTEMS

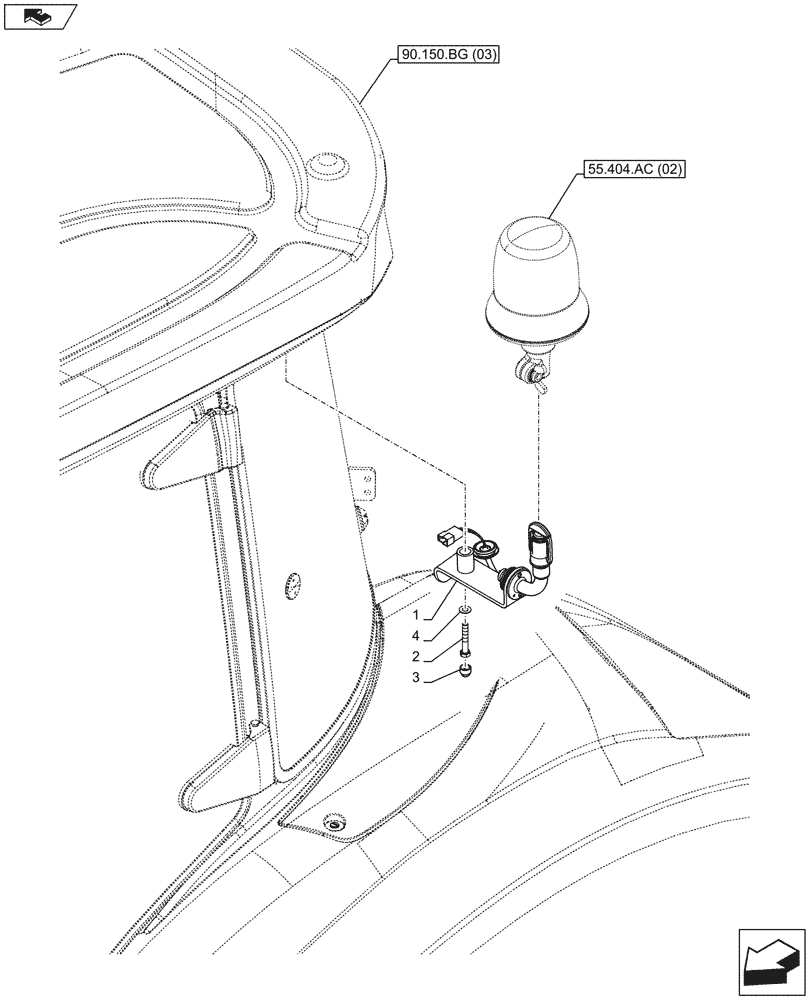

Схема запчастей Case IH FARMALL 115U - (55.404.AC[01A]) - VAR - 334916, 335702 - 1 ROTARY BEACON, SUPPORT - BEGIN YR 03-JUL-2015 (55) - ELECTRICAL SYSTEMS
90.150.bg (03)
2
4
3
home
1
55.404.ac (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47788366

SUPPORT

1шт.

2

16606124

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

87516431

CUP,for M8 Nut

1шт.

4

12602474

WAVE WASHER,Wave, M8.3

1шт.
