(55.302.AV[02]) - VAR - 390798 - POWERHARNESS W/ BDS AND BATTERY

Запчасти Case IH FARMALL 115U (55.302.AV[02]) - VAR - 390798 - POWERHARNESS W/ BDS AND BATTERY (55) - ELECTRICAL SYSTEMS

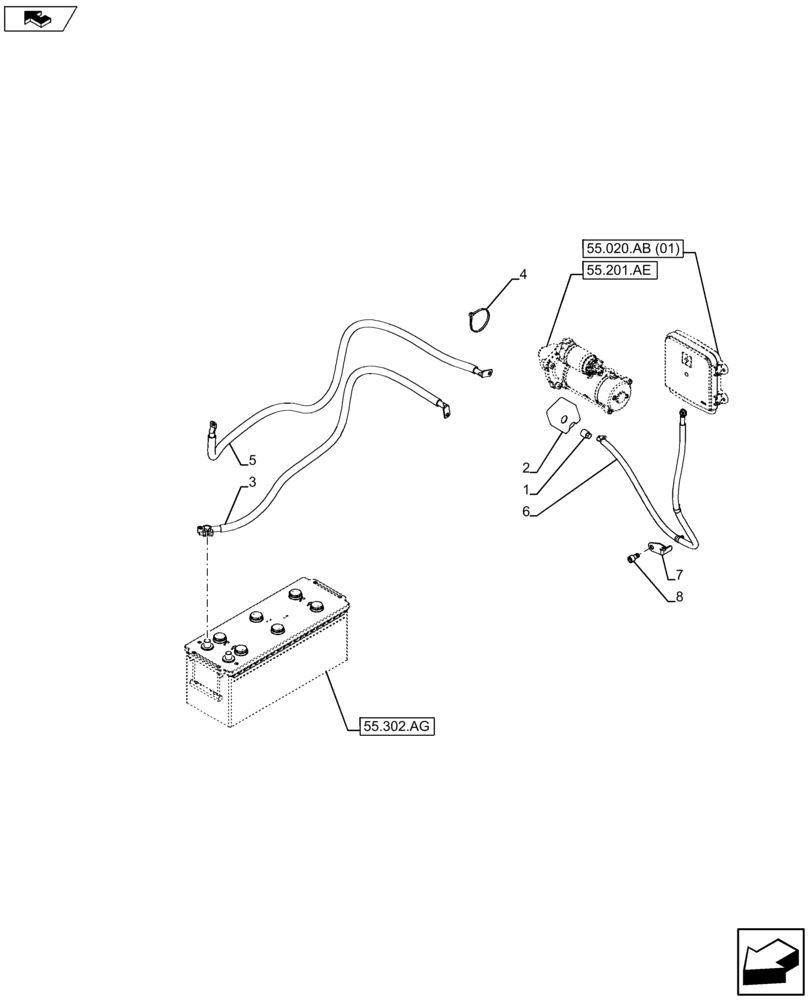

Схема запчастей Case IH FARMALL 115U - (55.302.AV[02]) - VAR - 390798 - POWERHARNESS W/ BDS AND BATTERY (55) - ELECTRICAL SYSTEMS
1
55.020.ab (01)
2
55.201.ae
4
3
7
home
8
5
home
6
55.302.ag
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5171012

NUT,M10

1шт.

2

87309612

COVER

1шт.

3

87487740

NEG BATTERY CABLE,1250mm L

Battery Negative

1шт.

4

14560187

COLLAR,199mm L

3шт.

5

47566476

WIRE HARNESS

Battery Positive

1шт.

6

84575785

ELECTRIC CABLE

Starter Motor

1шт.

7

47554087

BRACKET

1шт.

8

14432424

HEX SOC SCREW,M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.
