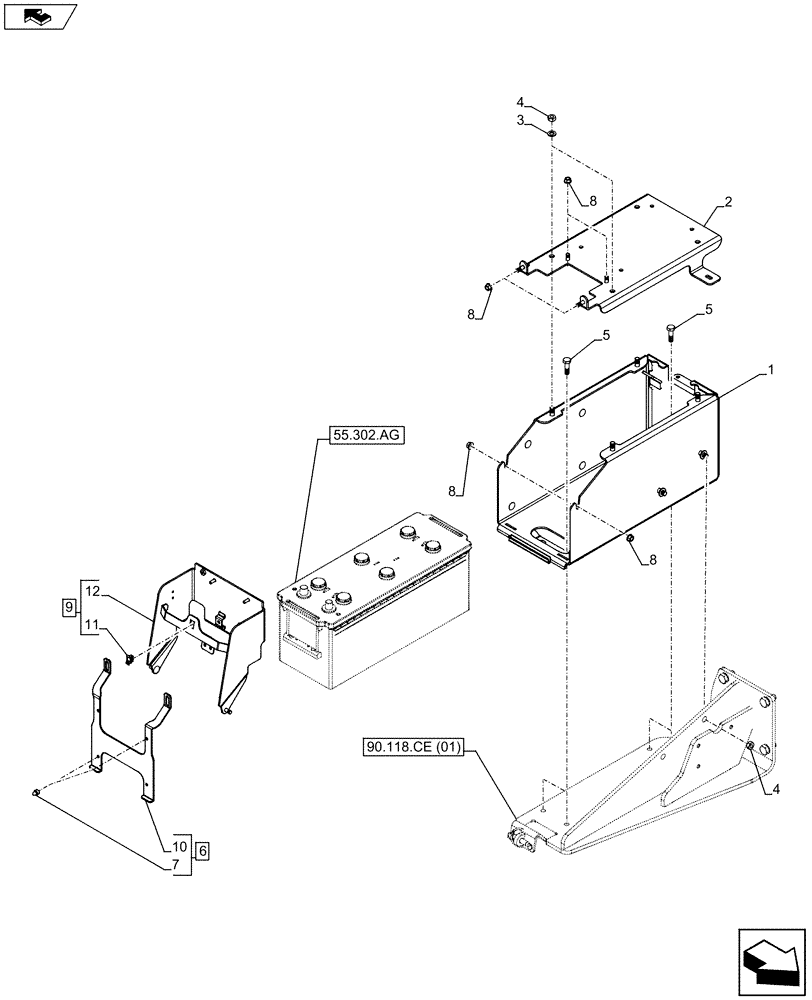

Запчасти Case IH FARMALL 115U (55.302.AK[03]) - VAR - 390124 - BATTERY SUPPORT - LESS MMV (55) - ELECTRICAL SYSTEMS

1

47392341

BATTERY BOX

1шт.

2

84589260

PLATE

1шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

5

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

6

84602329

BRACKET

ASSY, Incl 7, 10

1шт.

7

14624587

PLUG,D 6.3 x 3

4шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

9

84598448

BRACKET

ASSY, Incl 11-12

1шт.

10

NSS

NOT SOLD SEPARAT

Bracket, Incl in 6

1шт.

11

84590657

RETAINER

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket, Incl in 9

1шт.
