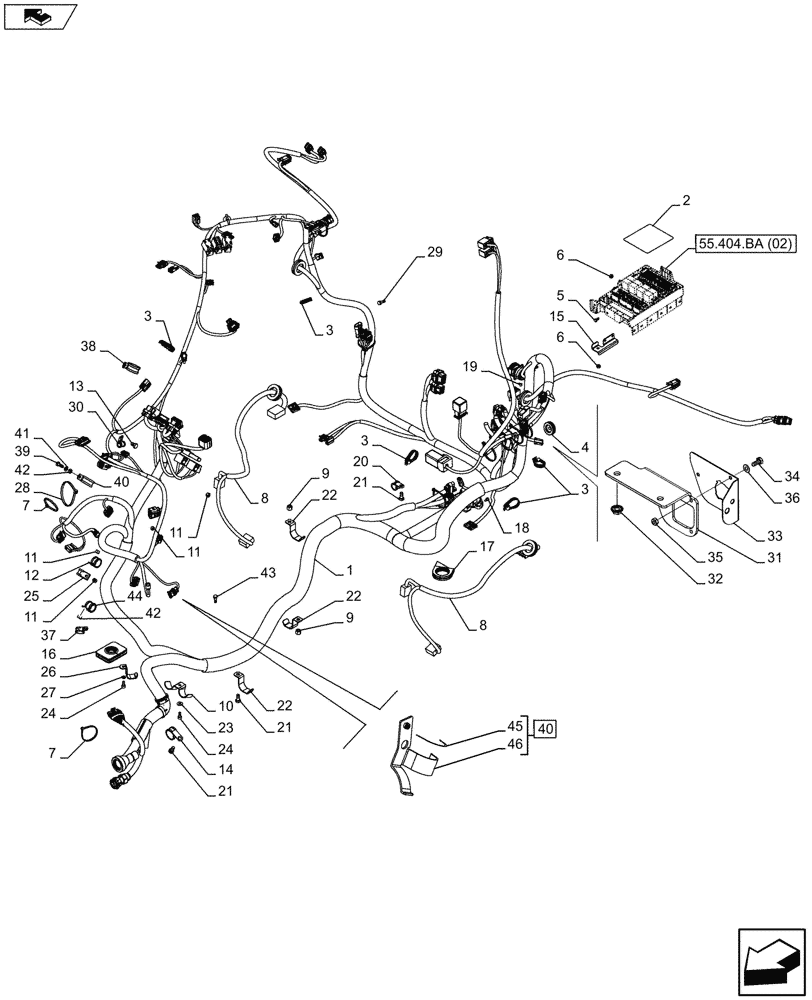

Запчасти Case IH FARMALL 115U (55.100.AI[01]) - VAR - 334114, 390430 - MAIN HARNESS (55) - ELECTRICAL SYSTEMS

1

47707962

WIRE HARNESS

1шт.

2

47557959

DECAL

1шт.

3

85805383

CABLE TIE

5шт.

4

10397780

INSULATING RING

1шт.

5

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

6

15896211

NUT,M6, Cl 8

3шт.

7

14560187

COLLAR,199mm L

2шт.

8

84323614

ELECTRIC CABLE

2шт.

9

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

10

84564064

BRACKET

1шт.

11

12574211

NUT,M6 x 1, Cl 8

4шт.

12

10419501

CLAMP,22mm, Coat, P Type

1шт.

13

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

14

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

15

84474008

BRACKET

1шт.

16

84408117

GROMMET

1шт.

17

84550801

GROMMET

1шт.

18

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

19

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.

20

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

21

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

22

84530712

BRACKET

2шт.

23

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

24

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

25

10442290

CLIP,30mm, Coat, P Type

1шт.

26

84530713

BRACKET

1шт.

27

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

28

14560287

CABLE TIE,207.00mm L

1шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

30

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

1шт.

31

47393042

BRACKET

1шт.

32

13046111

LOCK NUT,Flg Lock, M6

2шт.

33

47393044

BRACKET

1шт.

34

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

3шт.

35

10794011

NUT,M4, Cl 8

3шт.

36

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

37

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

2шт.

38

47130065

CLAMP

1шт.

39

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

40

47679047

BRACKET

ASSY, Incl 45, 46

1шт.

41

13604111

SPACER,6.5mm ID x 15mm OD x 10mm L

1шт.

42

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

43

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

1шт.

44

47579195

BRACKET

1шт.

45

5191016

SEAL,75mm L

1шт.

46

NSS

NOT SOLD SEPARAT

Braket, Incl in 40

1шт.
