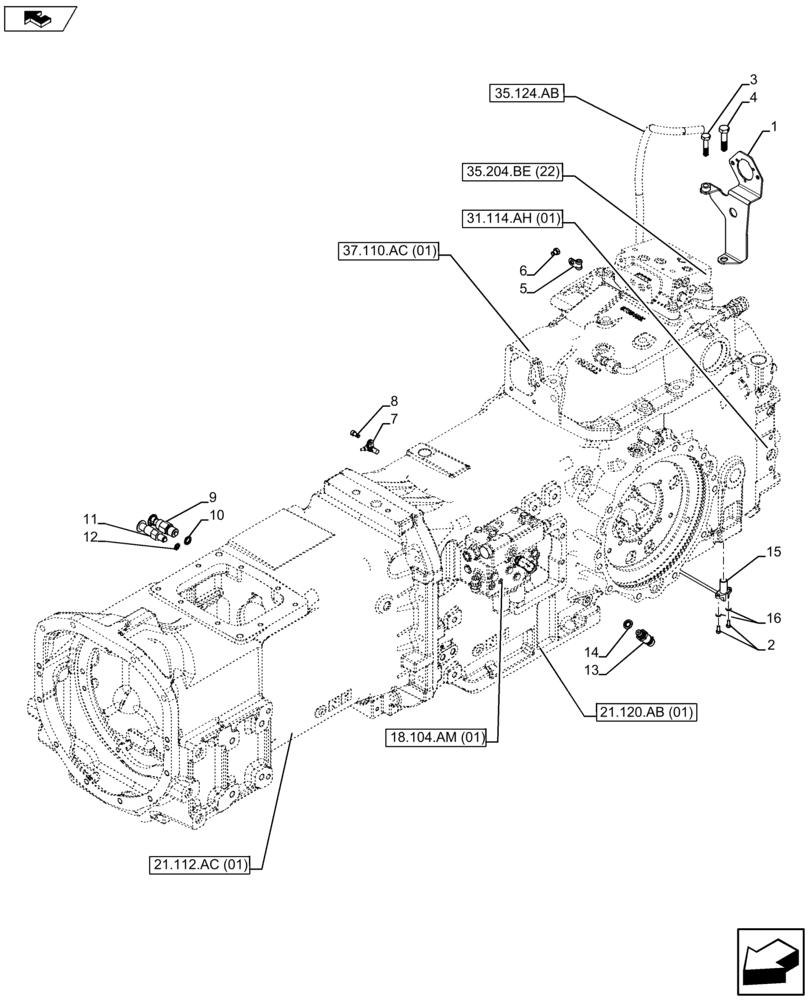

Запчасти Case IH FARMALL 115U (55.020.AB[03]) - VAR - 334114, 390430 - PRESSURE SWITCH, SENSOR, ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

1

47436993

BRACKET

1шт.

2

10977714

SCREW,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

3

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

1шт.

4

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

5

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

2шт.

6

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

7

84243033

SENSOR

Wheel Speed

1шт.

8

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

9

87369250

SWITCH

Mech, Shift Rail Position

1шт.

10

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

87369251

SWITCH ASSY

Shift Rail Position, Grey

1шт.

12

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

84407735

PRESSURE SWITCH,0.40 Bar

Transmission Oil

1шт.

14

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

15

84541361

SENSOR

Speed

1шт.

16

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.
