(50.100.AC[02]) - VAR - 334144 - HEATING SYSTEM, HYDR LINES

Запчасти Case IH FARMALL 115U (50.100.AC[02]) - VAR - 334144 - HEATING SYSTEM, HYDR LINES (50) - CAB CLIMATE CONTROL

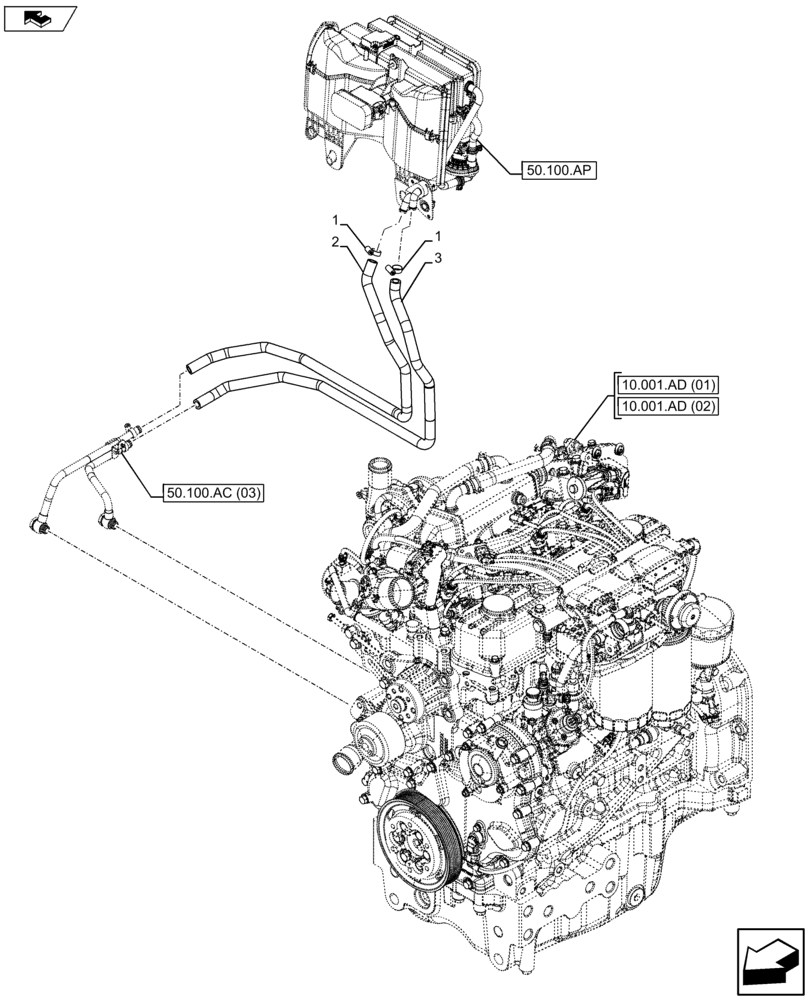

Схема запчастей Case IH FARMALL 115U - (50.100.AC[02]) - VAR - 334144 - HEATING SYSTEM, HYDR LINES (50) - CAB CLIMATE CONTROL
10.001.ad (01)
3
home
home
1
2
1
10.001.ad (02)
50.100.ac (03)
50.100.ap
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82039343

HOSE CLAMP,16mm - 27mm

2шт.

2

84604182

HEATER HOSE

1шт.

3

84604184

HEATER HOSE

1шт.

Выбрано товаров: 3
