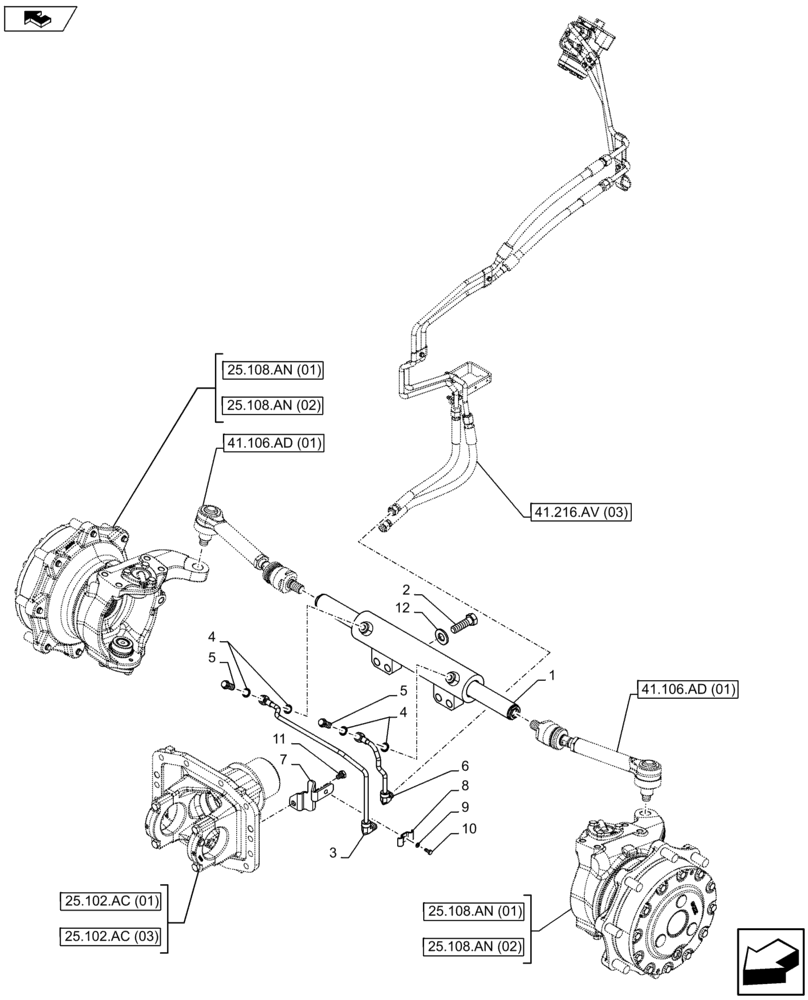

Запчасти Case IH FARMALL 115U (41.216.AA[01]) - VAR - 390399 - STEERING CYLINDER, 4WD FRONT AXLE (41) - STEERING

1

84477825

STEERING CYLINDER

1шт.

2

47371337

BOLT,Hex, M18 x 1.5 x 60mm

4шт.

3

84486746

PIPE

RH

1шт.

4

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

5

87736840

BOLT,M14 x 1.5 x 30mm

2шт.

6

84486764

PIPE

LH

1шт.

7

84545406

BRACKET

1шт.

8

4999554

CLAMP,2 Hoses

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

11

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

1шт.

12

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.
